1

00:00:03,400 --> 00:00:06,900

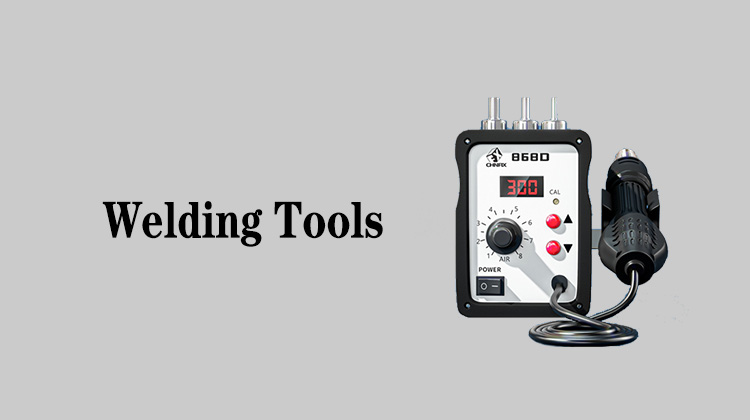

Now I'll introduce this straight-air hot gun to you

2

00:00:09,000 --> 00:00:10,600

First let's look at the panel

3

00:00:11,033 --> 00:00:14,800

There is a power switch in the lower left corner of the panel

4

00:00:15,766 --> 00:00:17,933

Turn on the power switch

5

00:00:19,000 --> 00:00:21,600

There is an LCD screen

6

00:00:23,800 --> 00:00:28,033

The button on the right is to adjust the air volume

7

00:00:28,900 --> 00:00:31,633

It'll be displayed in the area of 80

8

00:00:32,766 --> 00:00:36,033

The maximum value can be added up to 120

9

00:00:36,633 --> 00:00:39,500

Minimum value can be 1

10

00:00:43,500 --> 00:00:46,800

Adjust the air volume to an applicable air volume

11

00:00:49,600 --> 00:00:52,633

The left is to adjust the temperature

12

00:00:55,300 --> 00:00:58,600

Minimum temperature is 100 degrees

13

00:01:01,500 --> 00:01:04,166

Maximum can be up to 500 degrees

14

00:01:06,666 --> 00:01:09,833

Then set a suitable temperature

15

00:01:11,766 --> 00:01:14,733

There are three save buttons below

16

00:01:15,466 --> 00:01:19,266

We can save the preset temperature in our device

17

00:01:21,700 --> 00:01:23,066

Long press

18

00:01:27,800 --> 00:01:30,966

The corresponding CH 1 appears on the panel

19

00:01:32,600 --> 00:01:35,200

There is a beeping sound inside the machine

20

00:01:35,333 --> 00:01:40,166

It means that we have saved the current setting temperature in the first setting

21

00:01:41,366 --> 00:01:44,166

You can also continue to set the temperature

22

00:01:44,500 --> 00:01:46,700

Set the air volume

23

00:01:47,400 --> 00:01:49,433

Then long press CH 2

24

00:01:54,566 --> 00:01:57,000

This'll save the temperature in the second setting

25

00:01:57,633 --> 00:02:00,166

The third setting is the same

26

00:02:03,500 --> 00:02:06,800

This is the panel operation of this hot air gun

27

00:02:07,633 --> 00:02:10,200

During the welding process

28

00:02:10,500 --> 00:02:13,300

we may need to replace different nozzles

29

00:02:13,800 --> 00:02:18,466

Next, let's take a look at how to replace the nozzle of this hot air gun

30

00:02:19,433 --> 00:02:21,733

Turn off the power switch

31

00:02:25,533 --> 00:02:27,933

This nozzle has no screw

32

00:02:28,366 --> 00:02:30,966

Or other type of fasteners

33

00:02:31,466 --> 00:02:36,766

To remove the nozzle, immobilize the nozzle to the metal plate of the handle holder

34

00:02:38,666 --> 00:02:41,000

Shake from side to side

35

00:02:41,600 --> 00:02:44,400

So it'll be removed

36

00:02:44,866 --> 00:02:47,533

Then we choose the suitable nozzle

37

00:02:50,166 --> 00:02:52,233

put it in this slot

38

00:02:54,166 --> 00:02:55,733

Press down with your hand

39

00:02:57,066 --> 00:02:58,566

If it isn't pressed tightly

40

00:02:58,566 --> 00:03:01,266

Put it on the metal retainer

41

00:03:01,600 --> 00:03:02,466

Press down

42

00:03:03,133 --> 00:03:04,966

Turn the handle to press

43

00:03:06,200 --> 00:03:09,666

Then check the gap between the nozzle and the duct

44

00:03:15,133 --> 00:03:19,433

Look around, the gap should be about 2 mm evenly

45

00:03:20,866 --> 00:03:23,633

The nozzle has been replaced

46

00:03:26,533 --> 00:03:28,900

Then we can go to welding

47

00:03:29,100 --> 00:03:30,966

Choose the temperature we set

48

00:03:42,800 --> 00:03:45,833

Wait for the temperature to reach the temperature we set

49

00:03:46,033 --> 00:03:48,200

keep it at a constant temperature

50

00:03:48,366 --> 00:03:50,233

You can start welding now

51

00:03:51,366 --> 00:03:52,333

Welded

52

00:03:52,333 --> 00:03:54,133

Put the handle back on the holder

53

00:03:54,800 --> 00:03:57,066

It's cooling down now

54

00:03:58,500 --> 00:04:01,666

After the temperature drops to 100 degrees

55

00:04:01,966 --> 00:04:04,766

It will be in standby

56

00:04:14,100 --> 00:04:16,500

It is in standby now

57

00:04:20,033 --> 00:04:21,866

Thank you for watching
