Today I'll introduce a maintenance tool

2

00:00:05,066 --> 00:00:08,233

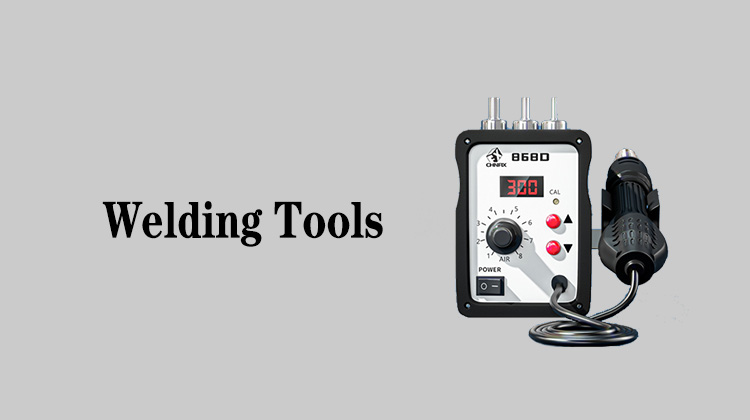

Straight-air SMD(surface-mounted device) rework station

3

00:00:08,400 --> 00:00:12,066

It's also well known as hot air gun

4

00:00:13,366 --> 00:00:15,766

There are two types of hot air guns

5

00:00:16,600 --> 00:00:20,400

One is rotary-air hot gun

6

00:00:21,200 --> 00:00:24,866

The other is straight-air hot gun

7

00:00:26,500 --> 00:00:32,100

Now what we see is a straight-air hot gun

8

00:00:33,533 --> 00:00:39,800

The difference between the straight one and the rotary one is the structure of the nozzle

9

00:00:42,733 --> 00:00:45,733

I'll talk about it in the following video

10

00:00:46,533 --> 00:00:51,300

Next, let's learn how to use this hot air gun

11

00:00:53,666 --> 00:00:55,533

First

12

00:00:56,066 --> 00:00:59,066

We need to understand the panel when we use it

13

00:00:59,866 --> 00:01:02,966

There are two knobs on the panel

14

00:01:03,666 --> 00:01:09,533

a power switch and a temperature display screen

15

00:01:10,933 --> 00:01:12,866

Rotate the temperature knob

16

00:01:13,866 --> 00:01:16,400

the numbers on the screen will change

17

00:01:17,266 --> 00:01:19,833

Rotate clockwise to increase temperature

18

00:01:20,333 --> 00:01:23,466

Rotate counterclockwise to lower the temperature

19

00:01:24,000 --> 00:01:25,400

To solder different components

20

00:01:25,400 --> 00:01:27,766

we need different temperatures

21

00:01:32,266 --> 00:01:35,400

On the left is the air volume knob

22

00:01:36,566 --> 00:01:38,700

When adjusting the air volume knob

23

00:01:39,366 --> 00:01:41,366

the screen does not change

24

00:01:41,466 --> 00:01:45,666

So we have to refer to the scale printed on the panel

25

00:01:46,933 --> 00:01:56,000

The specific temperature and air volume to be adjusted will be introduced in detail in our later welding courses

26

00:01:58,300 --> 00:02:01,400

After adjusting the temperature and air volume

27

00:02:01,566 --> 00:02:03,566

we can start the operation

28

00:02:04,100 --> 00:02:07,733

Lift the heat handle from the holder

29

00:02:11,100 --> 00:02:14,866

The temperature starts to heat up after picking up the handle

30

00:02:14,866 --> 00:02:17,100

When it reaches the temperature we set

31

00:02:17,266 --> 00:02:19,833

the temperature will be constant

32

00:02:20,266 --> 00:02:22,033

Now you can weld

33

00:02:22,200 --> 00:02:24,400

After welding

34

00:02:25,866 --> 00:02:28,500

put the handle back onto the holder

35

00:02:29,133 --> 00:02:31,266

Temperature starts to drop

36

00:02:33,200 --> 00:02:35,866

After dropping to 100 degrees

37

00:02:36,200 --> 00:02:39,033

the hot air gun is in standby

38

00:02:39,100 --> 00:02:42,033

Turn off the fan and heating circuit

39

00:02:45,600 --> 00:02:51,300

When using the hot air gun, we do not need to repeatedly switch the power of it

40

00:02:53,533 --> 00:02:57,533

You can turn off the power when not using it for a long time

41

00:03:05,100 --> 00:03:09,466

The hot air gun is equipped with different nozzles

42

00:03:11,100 --> 00:03:15,666

Normally,manufacturers will be equipped with 3 to 4 nozzles

43

00:03:16,366 --> 00:03:20,166

This hot air gun comes with three nozzles

44

00:03:20,366 --> 00:03:22,766

one is 1 cm

45

00:03:23,100 --> 00:03:25,133

one is 6 mm

46

00:03:25,466 --> 00:03:27,733

and the other is 2 mm

47

00:03:28,266 --> 00:03:32,733

The nozzle we are fitting to the handle is 6mm

48

00:03:32,766 --> 00:03:35,366

We also call it the medium nozzle

49

00:03:35,866 --> 00:03:41,266

Normally,this nozzle can solder most of the components on the circuit board

50

00:03:42,533 --> 00:03:46,800

Occasionally, when you need to solder some particularly large components

51

00:03:47,800 --> 00:03:50,866

you can replace the 1 cm nozzle

52

00:03:52,533 --> 00:03:54,833

How to replace the nozzle

53

00:03:55,866 --> 00:03:59,866

Loosen the fixed screw with a screwdriver

54

00:04:05,900 --> 00:04:07,900

After twisting it loose

55

00:04:08,466 --> 00:04:09,866

pull out the nozzle

56

00:04:11,566 --> 00:04:14,633

Choose the right nozzle to cover

57

00:04:16,600 --> 00:04:19,733

Tighten the screw at the duct

58

00:04:31,233 --> 00:04:36,500

This is everything for this hot air gun.Thank you for watching.
