1

00:00:02,700 --> 00:00:10,800

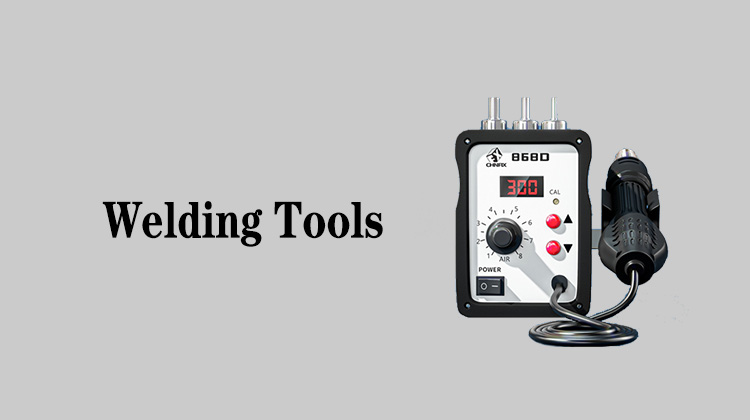

Today I'll tell you how to distinguish between a rotary-air SMD rework station and a straight-air one

2

00:00:12,166 --> 00:00:15,600

The main difference between them is the nozzle

3

00:00:15,833 --> 00:00:18,666

Next we remove the nozzle

4

00:00:22,033 --> 00:00:26,300

The straight-air nozzle is a cylinder

5

00:00:26,733 --> 00:00:30,366

with many openings at the top

6

00:00:32,433 --> 00:00:37,133

The top of the rotary-air nozzle is blocked

7

00:00:39,300 --> 00:00:44,833

There are some sloping metal pieces on the side like fan blades

8

00:00:49,533 --> 00:00:51,600

As for the straight-air

9

00:00:51,900 --> 00:00:56,466

The wind can go out directly from the duct

10

00:00:56,666 --> 00:00:58,166

As for the rotary-air

11

00:00:58,400 --> 00:01:04,400

It has to be blown out of the slanted metal sheet on the side

12

00:01:05,033 --> 00:01:08,900

So the wind is not blowing vertically

13

00:01:08,900 --> 00:01:12,266

It'll be scattered by the metal blades inside

14

00:01:12,600 --> 00:01:15,433

That's why we call it rotary-air

15

00:01:17,633 --> 00:01:22,300

If you can't tell whether it is a straight-air one or a rotary-air one

16

00:01:23,466 --> 00:01:27,266

You can remove the air nozzle and check it.

17

00:01:28,433 --> 00:01:32,366

So this is the difference between them

18

00:01:33,533 --> 00:01:36,533

When welding different components,

19

00:01:37,166 --> 00:01:43,333

I will tell you which one is needed in the later welding course

20

00:01:44,166 --> 00:01:47,100

The welding effect may be very different

21

00:01:47,100 --> 00:01:49,800

if you use the wrong one
