1

00:00:03,200 --> 00:00:09,266

Now I'll introduce a consumable used in the maintenance of electronic products

2

00:00:09,433 --> 00:00:10,300

Flux

3

00:00:11,866 --> 00:00:14,200

Many people also call it welding oil

4

00:00:14,900 --> 00:00:18,933

Let's learn how to distinguish between good and bad welding oil

5

00:00:22,333 --> 00:00:24,300

This is the cheapest

6

00:00:27,833 --> 00:00:31,066

We can clearly see a matte finish on the surface

7

00:00:33,766 --> 00:00:35,966

There is a lot of fat in it

8

00:00:39,300 --> 00:00:41,333

We also call it halogen

9

00:00:43,033 --> 00:00:50,566

There is no problem with this flux for soldering some wires or the very rough circuit boards in the early days

10

00:00:51,833 --> 00:01:00,766

This flux cannot be used for the repair of current notebooks, mobile phones and some other very delicate electronic products

11

00:01:01,133 --> 00:01:03,300

It gets wet easily

12

00:01:04,133 --> 00:01:08,666

This will lead to some slight short circuits and leakage of the pins of the chip

13

00:01:11,633 --> 00:01:13,766

This is an imported flux

14

00:01:15,533 --> 00:01:20,066

We can see that the transparency is obviously much better than this

15

00:01:22,566 --> 00:01:24,733

Bright on the surface

16

00:01:29,566 --> 00:01:33,333

The quality of this syringe-like flux is somewhat in between

17

00:01:34,366 --> 00:01:38,166

In the process of repairing mobile phones and notebooks

18

00:01:38,700 --> 00:01:42,533

we try to choose some relatively well-known brands in the world

19

00:01:43,200 --> 00:01:45,366

Then let's learn how to use flux

20

00:01:48,266 --> 00:01:50,166

Unscrew the plastic cover

21

00:01:51,966 --> 00:01:53,366

Pull out the cover

22

00:01:54,800 --> 00:01:56,966

Find a glass syringe

23

00:01:58,000 --> 00:02:00,200

This is a 5 ml syringe

24

00:02:03,033 --> 00:02:05,966

Use a knife handle or tweezers to push in

25

00:02:08,333 --> 00:02:11,000

About 1 ml to 2 ml

26

00:02:14,366 --> 00:02:15,566

Not too much

27

00:02:16,100 --> 00:02:20,133

If too much, the pusher inside this syringe stretches very long

28

00:02:22,133 --> 00:02:23,600

It won't work well

29

00:02:25,733 --> 00:02:28,333

So 1 to 2 ml is enough

30

00:02:28,866 --> 00:02:30,666

That's about 2ml

31

00:02:32,333 --> 00:02:33,566

It will feel better

32

00:02:36,066 --> 00:02:40,733

When soldering, squeeze the flux directly to the position that needs to be soldered

33

00:02:43,066 --> 00:02:44,633

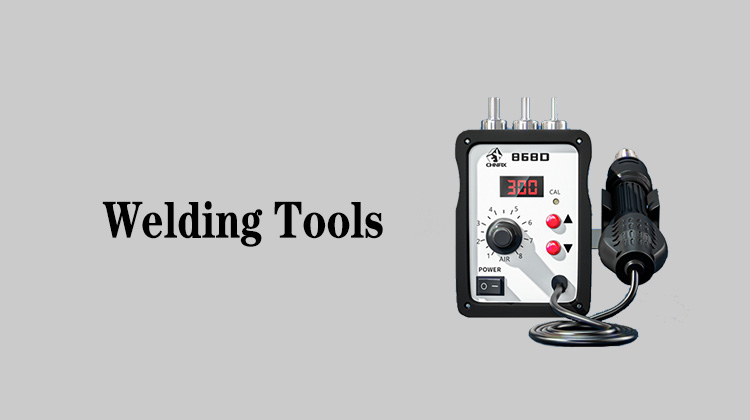

Heat with a hot air gun

34

00:02:44,700 --> 00:02:46,066

Spread the flux

35

00:02:48,900 --> 00:02:51,833

Then put the chip on it and you can solder it

36

00:02:54,800 --> 00:03:02,333

The flux packaged in the large bottle can be picked out with tweezers or a blade and wiped into the syringe

37

00:03:05,966 --> 00:03:07,466

Put that pusher back in

38

00:03:09,166 --> 00:03:10,533

This is how to use it

39

00:03:11,933 --> 00:03:14,866

If the maintenance task is not particularly heavy

40

00:03:15,500 --> 00:03:19,200

Or there is only one maintenance person in a single repair shop

41

00:03:19,766 --> 00:03:23,800

It is not recommended to buy this large bottle of flux

42

00:03:25,400 --> 00:03:28,866

If stored properly, it may last about a year

43

00:03:29,133 --> 00:03:36,666

If it is improperly stored, it can be deteriorated fast within a few days, or a month or two

44

00:03:36,866 --> 00:03:41,066

After deterioration, the flux will lose its original effect

45

00:03:42,400 --> 00:03:46,766

Not only can it not play the role of flux, but it will affect the welding

46

00:03:47,766 --> 00:03:52,100

It is recommended to store flux in an environment below 20 degrees

47

00:03:52,666 --> 00:03:59,033

It is best to seal it in a ziplock bag and store it in the freezer compartment of the refrigerator

48

00:04:00,133 --> 00:04:04,033

When you use it, take it out and put it in the syringe

49

00:04:05,000 --> 00:04:07,966

Then store this large bottle in the refrigerator

50

00:04:09,333 --> 00:04:12,266

This is all about the flux.Thank you for watching
