1
00:00:01,700 --> 00:00:08,866
Today I'll introduce a consumable used in the maintenance of an electronic product,rosin
2
00:00:09,533 --> 00:00:12,633
Rosin has two main functions in maintenance
3
00:00:13,000 --> 00:00:17,066
One is when the repaired motherboard has a short circuit
4
00:00:17,400 --> 00:00:19,733
We can find shorted components
5
00:00:19,866 --> 00:00:23,300
or a circuit with a shorted component connected
6
00:00:23,533 --> 00:00:28,266
Electronic components show signs of heating when they are short-circuited
7
00:00:28,466 --> 00:00:31,200
Use a soldering iron to melt the rosin
8
00:00:33,366 --> 00:00:37,033
and then put it over the surface of this component
9
00:00:38,366 --> 00:00:39,533
to heat
10
00:00:42,300 --> 00:00:46,733
The smoke emitted by the rosin will remain on the surface of the motherboard
11
00:00:46,833 --> 00:00:48,900
Energize the shorted circuit
12
00:00:49,533 --> 00:00:54,266
It is found that the surface of the component in a certain area is melted
13
00:00:56,266 --> 00:00:59,366
Suppose that the surface of this capacitor is melted
14
00:01:03,400 --> 00:01:06,566
If the surface of a single capacitor is melted
15
00:01:06,700 --> 00:01:08,833
it may be that the capacitor is damaged
16
00:01:12,100 --> 00:01:13,600
This is one of the functions
17
00:01:14,833 --> 00:01:16,900
Another function is to solder the chip
18
00:01:18,266 --> 00:01:20,866
A chip on this motherboard has been removed
19
00:01:21,433 --> 00:01:23,200
If we want to solder this chip
20
00:01:23,333 --> 00:01:26,133
You can also use rosin as flux to use
21
00:01:26,233 --> 00:01:27,700
There are two methods
22
00:01:27,800 --> 00:01:29,933

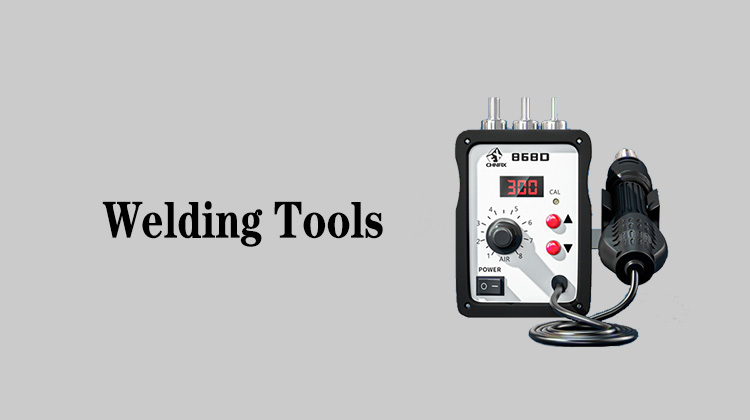

One is to heat with a hot air gun
23
00:01:31,266 --> 00:01:32,366
to melt the rosin
24
00:01:35,800 --> 00:01:38,633
Use tweezers to pick up the right amount of rosin
25
00:01:39,333 --> 00:01:41,733
Put it in the area that needs to be welded
26
00:01:43,600 --> 00:01:44,600
Blow to melt it
27
00:01:51,900 --> 00:01:53,366
This is one of the methods
28
00:01:53,700 --> 00:01:55,100
Here is another method
29
00:01:55,500 --> 00:01:58,866
Similar to the method of looking for short-circuit components
30
00:02:00,500 --> 00:02:02,733
Get a little rosin with a soldering iron
31
00:02:05,366 --> 00:02:08,233
Then go to the area that needs to be welded to smoke
32
00:02:11,100 --> 00:02:14,833
Smoke the area to be welded with a thin layer of rosin smoke
33
00:02:15,400 --> 00:02:16,666
To weld like that
34
00:02:18,833 --> 00:02:25,300
When rosin is used as a substitute for solder paste, it is not as easy to operate as solder paste
35
00:02:25,533 --> 00:02:27,933
Because rosin is solid when cooled
36
00:02:29,966 --> 00:02:31,700
crystalline solid state
37
00:02:32,933 --> 00:02:35,633
Then it will become more sticky when melted
38
00:02:36,333 --> 00:02:38,900
The amount applied is difficult to control
39
00:02:39,000 --> 00:02:40,866
And after the rosin has cooled
40
00:02:41,133 --> 00:02:44,633
This crystalline hard residue is on the perimeter of the chip
41
00:02:44,666 --> 00:02:46,466
Cleaning will be more difficult
42
00:02:46,766 --> 00:02:52,200
We mainly use it to find the hot spot of short circuit on the motherboard during maintenance
43
00:02:53,100 --> 00:02:54,300
when buying rosin
44
00:02:54,966 --> 00:02:58,200
We can check to see if there are any impurities inside
45
00:02:58,633 --> 00:03:00,766
Like this rosin I'm holding now
46
00:03:01,000 --> 00:03:03,033
The quality is not that good
47
00:03:03,833 --> 00:03:05,566
Like this area
48
00:03:05,933 --> 00:03:06,833
here
49
00:03:07,266 --> 00:03:08,566
and here
50
00:03:09,166 --> 00:03:09,966
and this
51
00:03:10,333 --> 00:03:13,300
You can clearly see some black stuff in there
52
00:03:14,400 --> 00:03:17,733
This rosin is not very good if used for welding
53
00:03:18,433 --> 00:03:21,966
The higher the transparency, the higher the purity
54
00:03:23,000 --> 00:03:24,633
The better the rosin material
55
00:03:26,633 --> 00:03:28,900
So much for rosin,thank you for watching
