1

00:00:03,266 --> 00:00:05,966

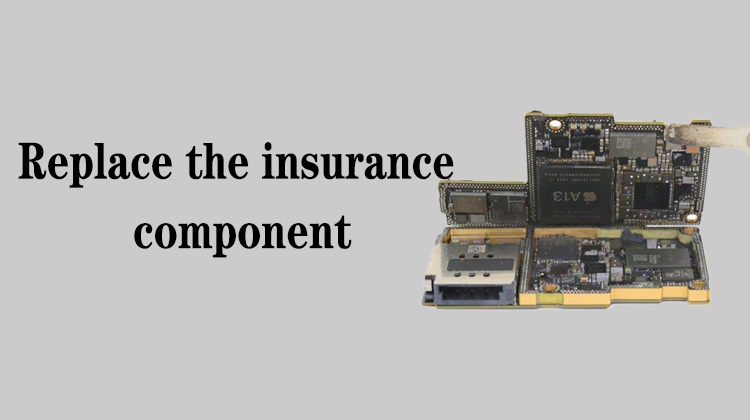

When repairing the motherboard of the mobile phone

2

00:00:06,500 --> 00:00:13,466

Occasionally, some small components are loosened during the welding of the mobile phone motherboard due to manual reasons

3

00:00:14,133 --> 00:00:18,233

For example, the area around the plastic connector we see now

4

00:00:18,633 --> 00:00:22,966

Some small solder beads appear on the surface of some components

5

00:00:23,766 --> 00:00:28,933

At this time, the components wrapped in black adhesive may have become loose

6

00:00:29,433 --> 00:00:37,033

Meanwhile, we can check the drawings to determine whether they are resistors, capacitors or inductors for maintenance

7

00:00:37,933 --> 00:00:40,533

If the capacitor is smaller in size

8

00:00:41,166 --> 00:00:43,366

We can see what it does on the drawing

9

00:00:44,100 --> 00:00:45,800

If it is a filter capacitor

10

00:00:46,100 --> 00:00:50,333

One end is connected to the signal or to the power supply

11

00:00:50,600 --> 00:00:52,300

The other end is grounded

12

00:00:52,900 --> 00:00:56,433

We can directly use tweezers to break this small capacitor off

13

00:00:57,600 --> 00:01:02,066

If this component is an insurance resistor or an insurance inductor

14

00:01:03,366 --> 00:01:06,333

Once it's loose we need to connect the loosen pad

15

00:01:06,800 --> 00:01:08,666

Remove this component first

16

00:01:11,033 --> 00:01:15,566

After removing it, we need to connect the corresponding two solder joints

17

00:01:18,633 --> 00:01:22,433

Let's say that the one we broke off is an insurance inductor

18

00:01:22,833 --> 00:01:24,733

Then let's see how to connect it

19

00:01:25,566 --> 00:01:27,233

Let's learn the first method

20

00:01:27,800 --> 00:01:29,033

Connect with solder

21

00:01:29,533 --> 00:01:34,633

At this time, we need to use a medium melt solder of 183 degrees

22

00:01:35,533 --> 00:01:39,933

Then completely cover the two pins of the components we need to connect with solder

23

00:01:40,800 --> 00:01:44,900

Meanwhile, it is best not to connect to the surrounding components

24

00:01:47,800 --> 00:01:50,066

Still using a straight-air hot gun

25

00:01:50,400 --> 00:01:54,300

Adjust the temperature to around 300-350 degrees

26

00:01:54,933 --> 00:01:55,633

The air volume is still the largest

27

00:01:57,866 --> 00:01:59,166

Then we blow this solder

28

00:02:02,166 --> 00:02:07,200

If it sticks to one side, we can use tweezers to gently push it to the other side

29

00:02:07,833 --> 00:02:11,500

Let it wrap both solder joints at the same time and then we reheat

30

00:02:12,833 --> 00:02:16,566

This is one of the methods to replace the damaged insurance component
