1

00:00:03,000 --> 00:00:04,666

After removing the shield

2

00:00:05,866 --> 00:00:08,033

Then we can scrape the edge glue

3

00:00:09,633 --> 00:00:12,533

I taped the bottom base with high temperature tape

4

00:00:15,333 --> 00:00:18,900

Prevents it from the solder extrusion during disassembly

5

00:00:21,866 --> 00:00:25,100

Put the high temperature tape on this position first

6

00:00:26,800 --> 00:00:29,800

It's better to tape more than 3 layers

7

00:00:32,900 --> 00:00:35,033

Let's scrape the edge glue first

8

00:00:38,166 --> 00:00:41,700

Both rotary-air hot gun or straight-air are okay

9

00:00:41,800 --> 00:00:43,166

Around 200 degrees

10

00:00:43,933 --> 00:00:46,366

Adjust the air volume to the maximum

11

00:00:49,766 --> 00:00:53,266

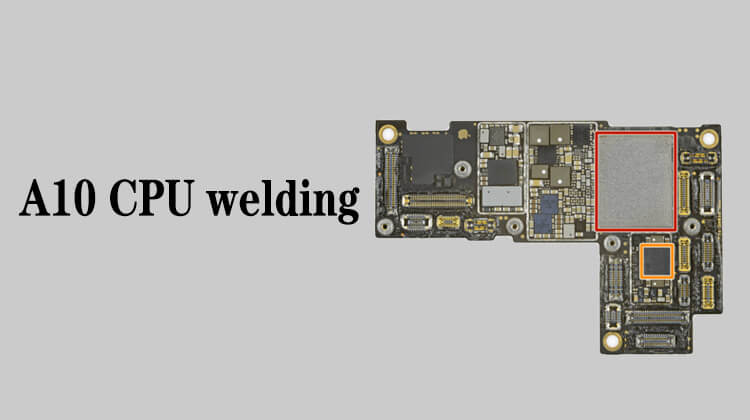

CPU like A10, there is a glass chip on the upper side

12

00:00:55,266 --> 00:00:58,266

This is a power amplifier chip for the earpiece

13

00:00:58,966 --> 00:01:01,633

Don't break the glass chip when we de-glue

14

00:01:02,666 --> 00:01:07,500

Because the power amplifier chip is directly connected to the main power supply

15

00:01:08,333 --> 00:01:12,966

If it is scratched and broken, it may cause leakage or short circuit

16

00:01:15,066 --> 00:01:17,066

Scrape from the side gently

17

00:01:30,100 --> 00:01:37,800

When scraping the edge glue, pay attention to see if there are relatively large electric pole coils around

18

00:01:37,966 --> 00:01:42,700

If the glue is loose when scrapping, we just use tweezers to push it off

19

00:01:47,166 --> 00:01:50,800

Because of the size of this electric pole coils

20

00:01:52,066 --> 00:01:56,100

There is a high probability that the surrounding poles will be loose.

21

00:02:11,700 --> 00:02:16,833

So the reason for the looseness is not necessarily that you scraped the edge glue,

22

00:02:17,333 --> 00:02:20,400

it is mainly caused by the previous heavy fall

23

00:02:22,466 --> 00:02:24,833

If you find it loose you remove it

24

00:02:39,133 --> 00:02:42,100

If it's a little loose, we don't need to worry about it

25

00:02:46,433 --> 00:02:50,800

For example, the inductor itself is mounted close to the CPU

26

00:02:52,600 --> 00:02:56,533

If we touch it when we scrape, it will definitely move a little bit

27

00:02:56,900 --> 00:02:59,400

But like this one, it isn't loose

28

00:02:59,766 --> 00:03:04,133

If you scrape it with a blade and it becomes loose, remove it

29

00:03:04,400 --> 00:03:07,600

If it's a little loose, we don't need to worry about it

30

00:03:08,733 --> 00:03:13,266

Because of the high temperature tape, it is not easy to see clearly

31

00:03:14,733 --> 00:03:17,500

Just scrape along the chip will do

32

00:03:25,533 --> 00:03:26,900

It is clean now
