1

00:00:03,000 --> 00:00:04,933

Now, let's start to reball

2

00:00:09,133 --> 00:00:12,266

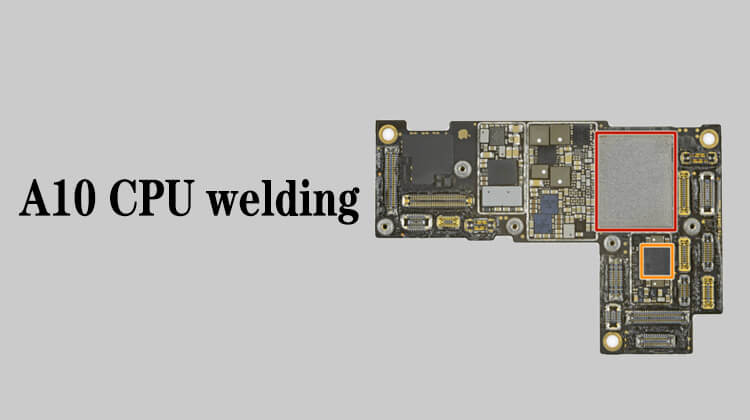

For CPUs after A10 , we all use tools to reball,

3

00:00:12,266 --> 00:00:14,400

there is no need to do it manually

4

00:00:51,400 --> 00:00:54,366

After spreading, wipe off the excess tin

5

00:00:55,066 --> 00:00:59,600

Start heating, the rotary air gun is still about 250 degrees

6

00:01:00,366 --> 00:01:04,366

Reball on this tool, and the temperature will be slightly higher

7

00:01:05,066 --> 00:01:09,100

Because there is black synthetic stone under it to dissipate heat

8

00:01:14,333 --> 00:01:18,333

Bake a large area, for about 1 minute before starting to blow

9

00:02:09,933 --> 00:02:13,633

The tin didn't stick to the area where we painted green oil

10

00:02:17,333 --> 00:02:20,633

But the last one we scraped off, it was sticked

11

00:02:30,166 --> 00:02:31,933

Remove the stencil

12

00:02:38,100 --> 00:02:42,700

These positions are relatively loose, so let's get rid of them

13

00:02:53,600 --> 00:02:55,766

This one is not completely glued,

14

00:02:56,066 --> 00:02:58,766

but it is glued by the solder oil,

15

00:02:58,766 --> 00:03:01,766

and it falls off with a light touch

16

00:03:28,533 --> 00:03:33,233

This piont has not been scraped, you just touch it and it will fall off

17

00:03:53,066 --> 00:03:55,400

Okay, we're done with reballing the tin

18

00:03:58,933 --> 00:04:02,533

There is no need to deal with these points in the middle of the frame

19

00:04:02,866 --> 00:04:05,333

If it is outside the frame, we need to scrape

20

00:04:09,200 --> 00:04:12,433

There's a little tin paste on the side, poke it off

21

00:04:24,266 --> 00:04:27,700

Okay, the reballing of this cpu has been completed
