110. Flatten the Solder on the Pads

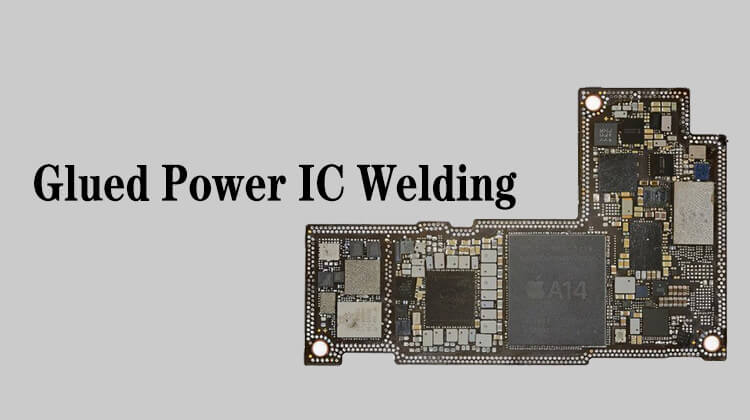

In the video, we start to remove the residual tin on the pads of the mainboard.
Detail
Comments

1

00:00:02,600 --> 00:00:06,866

Next, we start to remove the residual tin on the pads of the mainboard

2

00:00:09,200 --> 00:00:13,033

The glue on the bottom of the chip is basically taken away by the chip,

3

00:00:13,666 --> 00:00:15,133

when the chip is pried off

4

00:00:16,700 --> 00:00:19,533

Look, this is the the thick layer of black glue

5

00:00:21,466 --> 00:00:25,033

However, there is still a ring of glue on the edge of the mainboard.

6

00:00:25,700 --> 00:00:29,800

So we can directly apply the low melst solder to the mainboard when we flatten

7

00:00:30,500 --> 00:00:33,166

Because the surrounding glue forms a partition,

8

00:00:35,233 --> 00:00:38,466

The middle one is lower than the surrounding area, like a pool

9

00:00:39,400 --> 00:00:41,133

When you flatten the low melt solder,

10

00:00:41,366 --> 00:00:44,300

even if the low melt solder flows to the periphery,

11

00:00:44,666 --> 00:00:47,966

it is not easy to touch the small components on the edge

12

00:00:48,333 --> 00:00:51,366

Can add appropriate amount of low melt solder

13

00:00:54,900 --> 00:00:56,866

Add a small amount multiple times

14

00:00:57,200 --> 00:00:58,600

Let's add a little first,

15

00:00:59,200 --> 00:01:03,266

and if it's not enough to flatten on the edges, we'll add a little more

16

00:01:03,400 --> 00:01:04,733

Don't add too much at once

17

00:01:24,666 --> 00:01:28,966

Make sure that every pad around the perimeter is flattened by the soldering iron

18

00:01:49,333 --> 00:01:53,200

There is a piece of copper foil stuck on the tip of the soldering iron

19

00:01:56,700 --> 00:02:00,066

Let's wipe it off, otherwise, it might stick to these pads

20

00:02:00,933 --> 00:02:02,800

A little more low melt solder

21

00:02:12,933 --> 00:02:15,066

This pcb board is of poor quality,

22

00:02:17,866 --> 00:02:20,333

the soldering iron did not touch the board much,

23

00:02:20,333 --> 00:02:22,900

and a small part began to leak copper.

24

00:02:23,800 --> 00:02:27,766

Like this position, the color here has also become a little lighter.

25

00:02:28,500 --> 00:02:31,600

Therefore, we must pay attention to our strength when we flatten

26

00:02:32,133 --> 00:02:34,233

This board is very easy to leak copper

27

00:02:40,766 --> 00:02:44,200

The tin on the edges and corners is not easy to melt,

28

00:02:47,000 --> 00:02:50,300

just flatten the soldering iron back and forth at different angles

29

00:02:51,200 --> 00:02:53,400

to make sure it is completely melted

30

00:03:19,600 --> 00:03:24,366

This position was flattened a little more, and the copper foil leaked out a little bit.

31

00:03:24,700 --> 00:03:26,000

This board is so bad

32

00:03:59,733 --> 00:04:02,700

Okay, we're done with the low melt solder on the mainboard

33

00:04:03,000 --> 00:04:05,533

Now let's flatten the low melt solder on the chip.

34

00:04:08,633 --> 00:04:11,800

We use the chip card position on the fixture to fix the chip

35

00:04:14,466 --> 00:04:16,533

There is very little tin remaining on the chip,

36

00:04:16,700 --> 00:04:19,600

because the temperature of the chip we pry is very suitable

37

00:04:23,700 --> 00:04:26,800

There is still a lot of low melt solder on the soldering iron,

38

00:04:27,033 --> 00:04:28,466

we don't need to add more

39

00:04:39,666 --> 00:04:41,733

There is a thick layer of glue on the chip,

40

00:04:42,000 --> 00:04:44,433

which separates the soldering iron and the chip.

41

00:04:46,133 --> 00:04:49,066

So at this time, it doesn't matter if you flatten a little more

42

00:04:55,233 --> 00:04:57,066

Okay, we're done with the flattening
