1

00:00:02,533 --> 00:00:05,866

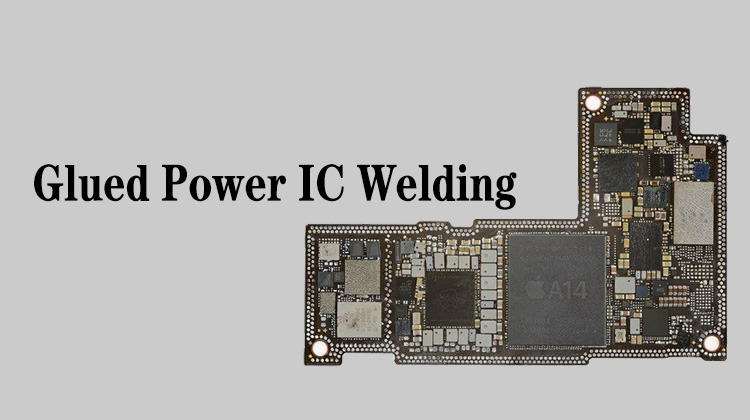

Next, let's deal with the black glue residue on the mainboard

2

00:00:08,500 --> 00:00:12,433

There is a lot of flux on the mainboard, it will be difficult to see

3

00:00:15,700 --> 00:00:19,466

Because under the microscope, the flux will be slightly reflective

4

00:00:19,833 --> 00:00:20,933

let's clean it

5

00:00:22,366 --> 00:00:25,366

In this case, the viewing effect will be better

6

00:00:42,333 --> 00:00:43,066

It's done

7

00:00:43,633 --> 00:00:46,466

Next we start to remove the glue on the edges

8

00:00:46,900 --> 00:00:51,133

There is basically no glue residue in the middle, mainly on the edges

9

00:00:51,500 --> 00:00:55,000

Copper leakage is easy to appear in the process of flattening,

10

00:00:55,300 --> 00:00:58,033

and it may also appear when removing glue

11

00:00:59,300 --> 00:01:01,000

Let's pay a little attention

12

00:01:01,500 --> 00:01:03,666

It's better to use a straight air gun,

13

00:01:04,033 --> 00:01:06,600

200 degrees, and the maximum air volume

14

00:01:13,166 --> 00:01:17,366

We gently poke it with a tweezer when the air gun blows the black glue

15

00:01:27,500 --> 00:01:30,033

It's easier to pick up once it's loose

16

00:01:31,366 --> 00:01:34,000

We have to pry up, don't poke at the mainboard

17

00:01:43,300 --> 00:01:46,800

It's fortunate that copper leakage doesn't happen on this area

18

00:02:06,933 --> 00:02:10,400

The temperature of 200 degrees will only soften the glue,

19

00:02:10,833 --> 00:02:12,700

and the tin will not react at all

20

00:02:13,500 --> 00:02:17,700

So we don't have to worry about loosening the small components when we remove the glue

21

00:04:15,533 --> 00:04:20,233

The glue in the lateral gaps of the edge should also be removed,

22

00:04:20,233 --> 00:04:23,966

to prevent the residue from hitting the chip when it is too much

23

00:04:46,933 --> 00:04:51,066

Ok, so we've completely removed all the glue from the edges
