1
00:00:03,000 --> 00:00:05,600

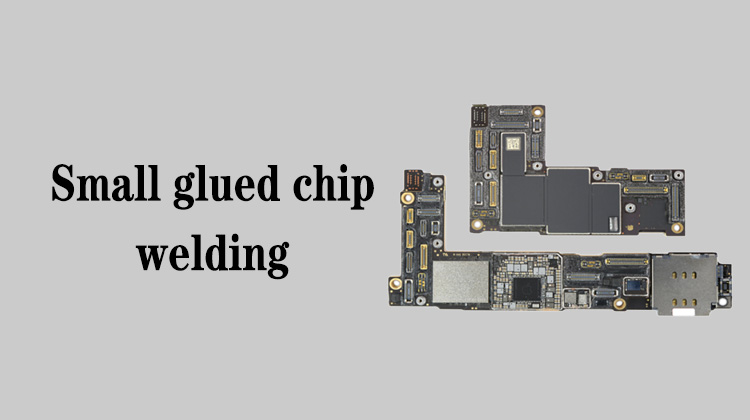

Let me show you how to disassemble and weld some
2
00:00:05,600 --> 00:00:09,166
small-sized adhesive chips on the mobile phone mainboard
3
00:00:18,000 --> 00:00:19,433
Let's look at the first way
4
00:00:21,766 --> 00:00:24,933
It is basically the same as the way of prying the
5
00:00:24,933 --> 00:00:27,233
power IC in our last video demonstration
6
00:00:31,066 --> 00:00:33,633
Blow it from the side with a straight air gun,
7
00:00:33,833 --> 00:00:37,400
450 degrees, the largest air volume
8
00:00:41,833 --> 00:00:44,566
The tip of the tweezer sticks to the bottom of the chip
9
00:00:47,966 --> 00:00:50,033
Then we pick it up while heating
10
00:01:02,933 --> 00:01:05,866
take this chip off it at the moment the tin melts
11
00:01:10,400 --> 00:01:13,633
In this way, there is basically no risk of the tin extrude
12
00:01:13,633 --> 00:01:15,366
in the surrounding components
13
00:01:17,666 --> 00:01:20,600
Especially as this chip is closer to the CPU
14
00:01:22,866 --> 00:01:24,766
If you blow it for a little longer,
15
00:01:24,966 --> 00:01:27,566
it is easy to blow the tin of the CPU or the
16
00:01:27,566 --> 00:01:29,800
small components around the CPU
17
00:01:40,633 --> 00:01:43,133
This is our first disassembly method
18
00:01:45,466 --> 00:01:48,333
Just choose an area with some open space around it
19
00:01:48,333 --> 00:01:50,000
where the tweezer can get in
20
00:01:52,933 --> 00:01:56,200
For example, this chip, it is not suitable for prying
21
00:01:56,200 --> 00:01:57,266
in the way we just did
22
00:01:59,433 --> 00:02:02,400
Because it is inconvenient to operate in this position,
23
00:02:02,700 --> 00:02:04,333
the tweezer is not easy to pick
24
00:02:05,666 --> 00:02:08,666
But this chip, because the space on the right side
25
00:02:08,666 --> 00:02:10,433
of it is relatively empty
26
00:02:13,066 --> 00:02:14,766
It's easier to put the tweezer
27
00:02:17,133 --> 00:02:19,033
This is the first way to disassemble
