1

00:00:03,000 --> 00:00:05,733

After reading the three different disassembly methods,

2

00:00:06,333 --> 00:00:08,500

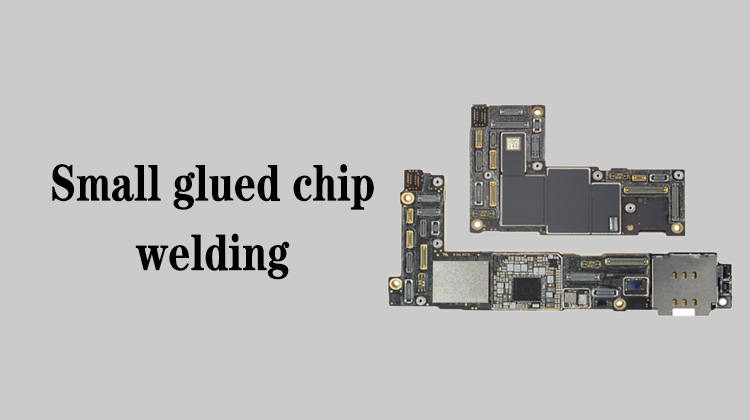

let's take a look at how to deal with the pads

3

00:00:08,500 --> 00:00:10,066

and residual tin on the mainboard

4

00:00:11,266 --> 00:00:13,000

Let's apply a little flux first

5

00:00:44,533 --> 00:00:47,633

Stick some low melt solder on the tip of the soldering iron

6

00:00:48,133 --> 00:00:49,966

flatten all the pads on the mainboard

7

00:00:52,033 --> 00:00:54,866

The mainboard made by this manufacturer is relatively poor.

8

00:00:55,266 --> 00:00:58,466

I flattened a little, and there was a idle pad broke off

9

00:00:59,000 --> 00:01:02,133

Where there is glue on the edge, the pad is not easy to melt

10

00:01:05,733 --> 00:01:09,166

We can use the air gun to assist, it's better to flatten

11

00:01:09,300 --> 00:01:13,200

Straight air gun, the temperature is 150-200 degrees

12

00:01:19,800 --> 00:01:21,900

Especially for such a small chip,

13

00:01:22,433 --> 00:01:24,833

it can only fit the tip of the soldering iron,

14

00:01:25,033 --> 00:01:27,633

and there are many pads that cannot be flattened

15

00:01:29,800 --> 00:01:33,366

If there is temperature to assist, it will be better to flatten

16

00:01:43,433 --> 00:01:46,133

Okay, we've finished flattening this position,

17

00:01:46,466 --> 00:01:48,966

and then let's flaten the other two positions

18

00:02:07,433 --> 00:02:09,566

At a temperature of 200 degrees,

19

00:02:10,433 --> 00:02:13,433

the tin extrude won't happen on the components

20

00:02:39,900 --> 00:02:42,300

It's a little hard to flatten this position,

21

00:02:42,900 --> 00:02:47,533

because there are still some residual glass crystals on the edge

22

00:03:18,066 --> 00:03:23,033

The tip of the soldering iron is not easy to stick on the tin, let's wipe it

23

00:04:50,666 --> 00:04:54,066

Generally, there are more grounded pads on the corners of the chip.

24

00:04:54,266 --> 00:04:55,866

When you flatten these corners,

25

00:04:56,633 --> 00:05:00,633

if there is no air gun to assist, there is no response at all

26

00:05:01,500 --> 00:05:03,066

For example, like this corner

27

00:05:06,200 --> 00:05:08,166

We have to take the air gun to assist,

28

00:05:09,500 --> 00:05:11,966

and slowly flatten it a few times

29

00:05:15,466 --> 00:05:17,200

Then It melted right away
