In this lesson, we will talk about the power chips

2

00:00:03,000 --> 00:00:05,666

The power chip is referred to as PMU,

3

00:00:05,966 --> 00:00:08,966

and its full name is called the power management unit,

4

00:00:09,200 --> 00:00:12,933

so it is referred to as PMU, or PMIC

5

00:00:14,233 --> 00:00:16,266

What is the role of the power supply?

6

00:00:16,800 --> 00:00:21,800

It is responsible for converting the Vage of about 4V provided by the battery

7

00:00:21,800 --> 00:00:23,966

into the main power supply of the circuits,

8

00:00:24,266 --> 00:00:25,700

or into BUCK circuits,

9

00:00:25,800 --> 00:00:28,266

or the Vage of the linear regulator,

10

00:00:28,933 --> 00:00:31,066

provide the power supply to the CPU,

11

00:00:31,366 --> 00:00:35,200

the temporary storage font, the radio frequency circuit,

12

00:00:35,433 --> 00:00:38,633

the camera circuit, WiFi circuit, etc.

13

00:00:42,400 --> 00:00:45,966

Simply put, the power chip is a power conversion chip

14

00:00:46,366 --> 00:00:50,066

It converts the power of the battery into a switching power supply,

15

00:00:50,333 --> 00:00:54,700

and converts it into the high and low Vages required by different chips

16

00:00:54,700 --> 00:00:57,700

through the internal BUCK and LDO modules

17

00:00:58,300 --> 00:01:02,100

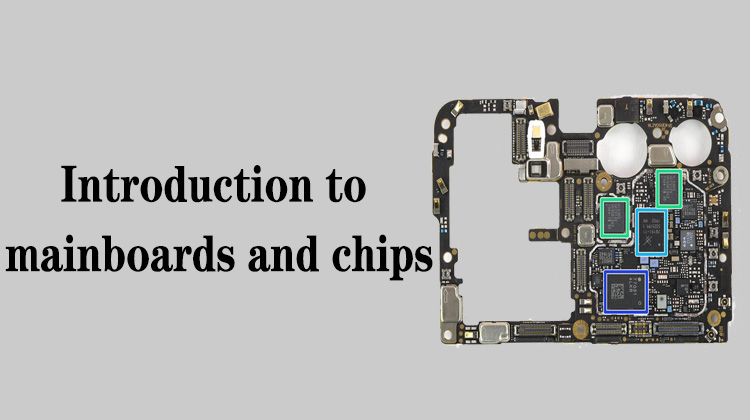

The frame on the left shows the two power chips of the mainboard

18

00:01:09,100 --> 00:01:11,400

What is the main power supply in the circuit?

19

00:01:12,066 --> 00:01:14,933

From the name, it is known that it is a main power supply,

20

00:01:15,033 --> 00:01:17,333

which will be supplied to the power supply,

21

00:01:17,333 --> 00:01:20,900

with a Vage of 3.8-4.3 V

22

00:01:25,633 --> 00:01:27,000

OK let's take a look

23

00:01:27,466 --> 00:01:29,000

Input a high Vage,

24

00:01:29,333 --> 00:01:32,700

after step-down conversion, output a low Vage,

25

00:01:33,200 --> 00:01:36,433

the output Vage is less than the input Vage,

26

00:01:36,566 --> 00:01:38,233

this is called step-down

27

00:01:38,600 --> 00:01:40,333

For example, in the circuit,

28

00:01:40,633 --> 00:01:45,200

we input a Vage of 3.8-4.3 V to the power chip

29

00:01:45,866 --> 00:01:49,900

After it meets the conditions, we press the power button signal,

30

00:01:50,300 --> 00:01:53,633

that is, connect the power button signal to the ground wire,

31

00:01:53,966 --> 00:01:56,700

which will pull down the 1.8V,

32

00:01:56,833 --> 00:01:59,433

and we pull it down for more than 5 seconds

33

00:01:59,966 --> 00:02:01,433

Generally at this time,

34

00:02:01,466 --> 00:02:05,300

the power chip will output a lot of relatively low Vages,

35

00:02:05,933 --> 00:02:06,800

for example,

36

00:02:06,800 --> 00:02:09,933

it will generate 0.6-1.8V

37

00:02:12,900 --> 00:02:16,600

You see, its input is 3.8-4.3V,

38

00:02:16,900 --> 00:02:22,533

and the output Vage is obviously very low, 0.6V to 1.8V,

39

00:02:23,066 --> 00:02:24,500

this is step-down

40

00:02:26,400 --> 00:02:32,200

It will also generate a 1.2-1.8 V power supply to the running memory,

41

00:02:32,533 --> 00:02:36,633

and a 1.8-3 V power supply to the font library

42

00:02:38,200 --> 00:02:39,233

Other functions

43

00:02:39,400 --> 00:02:41,066

such as the time circuit

44

00:02:42,066 --> 00:02:45,466

For example, clock signal generates time circuit

45

00:02:45,566 --> 00:02:47,566

We can see the time in the mobile phone,

46

00:02:47,733 --> 00:02:49,900

that is the time circuit is working

47

00:02:50,466 --> 00:02:53,800

The temperature detection circuit is also on the power chip

48

00:02:54,633 --> 00:02:59,100

Temperature detection is to detect the temperature of the main functional modules

49

00:02:59,100 --> 00:03:01,233

in different positions on the mainboard

50

00:03:02,600 --> 00:03:04,366

When the temperature is too high,

51

00:03:04,600 --> 00:03:09,766

the mobile phone will issue a warning that the temperature is too high to protect the mobile phone

52

00:03:10,833 --> 00:03:16,333

The power chip also has the functions of overvoltage protection and overcurrent protection

53

00:03:16,600 --> 00:03:21,966

Overvoltage protection means that when the voltage is too high and does not meet the standard,

54

00:03:22,033 --> 00:03:23,833

it will protect the circuit

55

00:03:24,333 --> 00:03:30,266

Overcurrent protection means that when a failure occurs in the circuit and a large current is generated,

56

00:03:30,733 --> 00:03:33,900

it will stop the circuit and play a protective role

57

00:03:35,166 --> 00:03:37,466

The above is the role of the power chip

58

00:03:37,933 --> 00:03:39,533

In actual maintenance,

59

00:03:39,533 --> 00:03:43,366

the main function of the power supply chip is to reduce the voltage

60

00:03:44,000 --> 00:03:48,966

After the input power supply is reduced by multiple modules inside the power supply,

61

00:03:49,333 --> 00:03:52,900

it is supplied to the CPU, temporary storage,

62

00:03:53,233 --> 00:03:55,433

font library, etc.

63

00:03:56,033 --> 00:03:58,266

Alright, that's it for this lesson
