1

00:00:00,100 --> 00:00:02,933

In this lesson, we will talk about the charging chips

2

00:00:03,400 --> 00:00:05,933

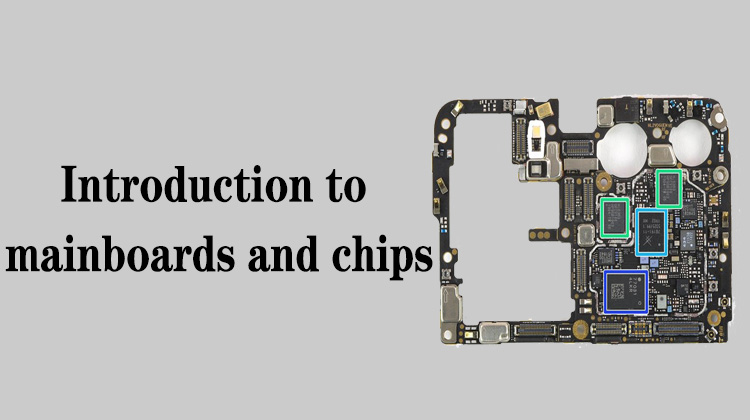

The picture shows a charging chip on the mainboard

3

00:00:08,133 --> 00:00:12,700

The charging chip converts a 5V voltage input from the charging cable

4

00:00:12,700 --> 00:00:14,666

into the main power supply in the mobile phone,

5

00:00:14,733 --> 00:00:19,366

and then converts the main power supply to the positive electrode of the battery for charging

6

00:00:20,000 --> 00:00:23,800

The charging chip is also responsible for detecting battery power,

7

00:00:23,866 --> 00:00:27,000

temperature, data and other information

8

00:00:29,133 --> 00:00:30,566

Let's look separately

9

00:00:30,633 --> 00:00:33,800

Like the Hisilicon platform and the MediaTek platform,

10

00:00:34,000 --> 00:00:36,100

they often use independent charging chips

11

00:00:36,466 --> 00:00:39,533

That is, the charging chip is installed independently,

12

00:00:39,633 --> 00:00:40,800

not in other chips

13

00:00:41,300 --> 00:00:43,566

Because the charging power is relatively large

14

00:00:43,833 --> 00:00:45,833

and the heat generation is also large,

15

00:00:46,600 --> 00:00:49,866

the charging chip is generally designed under the SIM card holder,

16

00:00:50,200 --> 00:00:52,166

there is a large inductor on the side

17

00:00:52,666 --> 00:00:54,066

Here is the SIM card holder,

18

00:00:54,433 --> 00:00:55,600

this is the charging chip,

19

00:00:55,900 --> 00:00:57,900

there is a large inductor on the side

20

00:01:01,000 --> 00:01:02,666

This is from Hisilicon

21

00:01:02,900 --> 00:01:04,500

It starts with Hi

22

00:01:04,633 --> 00:01:07,166

Its charging chip is under the SIM card holder

23

00:01:07,333 --> 00:01:09,400

There is a large inductor next to it

24

00:01:09,633 --> 00:01:15,100

In this way, we can basically judge the location of the charging chip by the appearance features

25

00:01:16,066 --> 00:01:19,000

The MediaTek platform uses BQ series chips

26

00:01:20,200 --> 00:01:24,166

BQ series chips start with BQ, used by Huawei

27

00:01:24,433 --> 00:01:32,233

Hi stands for Hisilicon series, such as Hi 6523, Hi 6526

28

00:01:33,966 --> 00:01:38,833

The charging chip used by Qualcomm in the early days was integrated inside the power chip

29

00:01:38,933 --> 00:01:40,400

For example, this chip,

30

00:01:40,500 --> 00:01:43,266

PM8150B is the charging chip,

31

00:01:43,266 --> 00:01:45,233

located below the SIM card holder,

32

00:01:45,233 --> 00:01:47,300

and there is a large inductor on its side

33

00:01:47,500 --> 00:01:50,800

Like Qualcomm's 855 865 platform,

34

00:01:51,033 --> 00:01:53,600

small power supplies are commonly used

35

00:01:53,933 --> 00:01:58,200

This charging chip PM8150B is a common charging chip

36

00:01:58,533 --> 00:02:00,166

As for the fast charging chip,

37

00:02:00,300 --> 00:02:04,166

Qualcomm generally uses the BQ 25970

38

00:02:04,733 --> 00:02:05,633

At present,

39

00:02:05,633 --> 00:02:10,233

many mid-to-high-end mobile phones will have fast charging chips starting with BQ

40

00:02:11,166 --> 00:02:13,233

Okay, that's all for this lesson
