1

00:00:00,133 --> 00:00:02,900

We'll talk about the RF chips in this lesson

2

00:00:02,966 --> 00:00:05,966

RF is the abbreviation of radio frequency

3

00:00:06,733 --> 00:00:10,066

The RF chip has functions such as signal transmission,

4

00:00:10,066 --> 00:00:15,266

signal reception, frequency synthesis, and power amplifier circuit

5

00:00:15,566 --> 00:00:17,300

When we send the messages,

6

00:00:17,433 --> 00:00:21,666

the radio frequency chip converts the low-frequency local signal into

7

00:00:21,666 --> 00:00:24,366

a high-frequency radio frequency signal

8

00:00:24,366 --> 00:00:26,866

and sends it to the antenna in the mobile phone,

9

00:00:27,100 --> 00:00:30,666

which is converted by the antenna and sent to the base station

10

00:00:31,100 --> 00:00:35,800

When receiving, it converts the received high-frequency radio frequency signal

11

00:00:35,800 --> 00:00:37,766

into a low-frequency local signal

12

00:00:37,900 --> 00:00:40,733

and send it to the baseband CPU for decoding

13

00:00:42,300 --> 00:00:48,100

The local signal mentioned here refers to the sound signal processed by the sound circuit in the mobile phone,

14

00:00:48,233 --> 00:00:50,333

which belongs to the low frequency

15

00:00:50,666 --> 00:00:53,433

RF chip and CPU are used together

16

00:00:53,866 --> 00:00:55,433

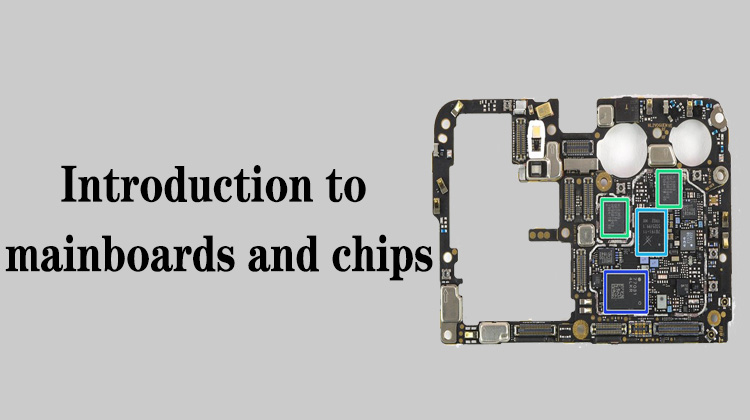

In the physical mainboard,

17

00:00:55,833 --> 00:01:01,300

there are a large number of components of different colors on the side of the RF chip

18

00:01:01,633 --> 00:01:06,633

The RF chips used by Qualcomm are WTR series and SDR series,

19

00:01:06,866 --> 00:01:11,466

which means that its chip models start with WTR or SDR

20

00:01:12,033 --> 00:01:15,800

The WTR series is used by some early Android phones,

21

00:01:15,933 --> 00:01:18,666

and the SDR series is the current mainstream

22

00:01:19,066 --> 00:01:23,466

The RF chip in the picture on the right has many small capacitors next to it,

23

00:01:23,633 --> 00:01:26,400

and there must no large inductor next to it

24

00:01:31,733 --> 00:01:36,866

At present, mobile phones using Hisilicon CPUs on the Hisilicon platform

25

00:01:36,866 --> 00:01:39,666

usually use Hisilicon series RF chips

26

00:01:41,266 --> 00:01:45,900

For example, this is Hisilicon, which uses Hisilicon RF chips

27

00:01:46,033 --> 00:01:49,166

Its model is Hi6363

28

00:01:49,333 --> 00:01:52,300

MTK usually uses the MT series

29

00:01:52,600 --> 00:01:54,666

For example, in the picture on the right,

30

00:01:54,800 --> 00:01:58,600

the RF chip model is MT6177W,

31

00:01:59,000 --> 00:02:01,133

which belongs to the MT series

32

00:02:03,666 --> 00:02:05,433

Okay, that's it for this lesson
