In this lesson we talk about RF power amplifier chips

2

00:00:04,600 --> 00:00:10,466

The RF power amplifier is the power amplifier chip in the radio frequency circuit of the mobile phone,

3

00:00:10,633 --> 00:00:13,133

referred to as the RF power amplifier

4

00:00:15,533 --> 00:00:16,900

As we mentioned before,

5

00:00:17,500 --> 00:00:22,833

the radio frequency chip converts the digital signal of the mobile phone into an analog signal,

6

00:00:23,100 --> 00:00:26,433

but it is very weak and not enough to send to the base station,

7

00:00:26,533 --> 00:00:29,700

so there is generally a PA in the radio frequency chip,

8

00:00:30,066 --> 00:00:31,800

short for power amplifier

9

00:00:32,300 --> 00:00:35,700

A power amplifier used in a radio frequency circuit is a chip

10

00:00:35,700 --> 00:00:37,600

that can amplify electrical power

11

00:00:51,300 --> 00:00:54,200

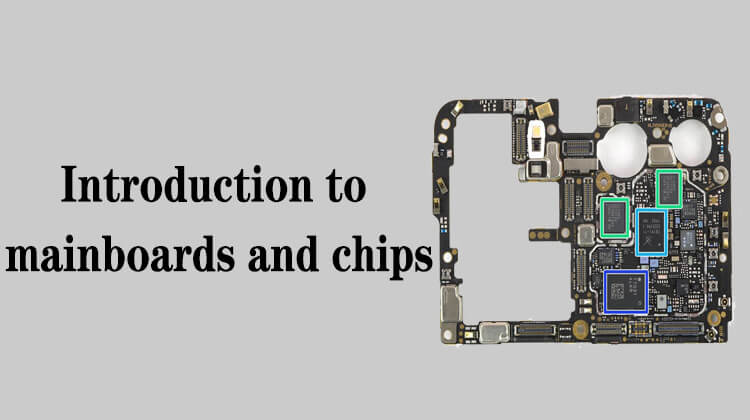

In the picture on the right, the two chips we framed,

12

00:00:54,466 --> 00:00:57,900

this and this, are the RF power amplifier chips

13

00:01:02,800 --> 00:01:05,233

The power amplifier chip of Android mobile phone

14

00:01:05,233 --> 00:01:07,500

is generally on the side of the antenna port

15

00:01:07,800 --> 00:01:11,400

This is the antenna port, where the antenna is mounted,

16

00:01:11,866 --> 00:01:14,166

and the amplifier is right next to it

17

00:01:15,700 --> 00:01:19,266

There are hooks and forks on the surface of the power amplifier chip,

18

00:01:19,366 --> 00:01:20,933

or irregular fonts

19

00:01:21,800 --> 00:01:23,866

As you can see in the picture on the right,

20

00:01:24,200 --> 00:01:28,366

the symbol of the power amplifier is very irregular, like a fork

21

00:01:33,300 --> 00:01:36,266

There are two common power amplifiers in mobile phones,

22

00:01:36,466 --> 00:01:40,166

generally called main power amplifier and sub power amplifier

23

00:01:40,766 --> 00:01:44,800

The main power amplifier is also called a multi-module power amplifier

24

00:01:45,366 --> 00:01:47,266

The appearance is rectangular

25

00:01:47,466 --> 00:01:50,766

It is generally a 3G and 4G power amplifier

26

00:01:51,033 --> 00:01:54,266

The sub power amplifier is also called the antenna switch,

27

00:01:54,500 --> 00:01:57,633

or the RF front-end chip, which is square

28

00:01:58,633 --> 00:02:00,466

This is the main power amplifier,

29

00:02:00,700 --> 00:02:02,600

this is the sub power amplifier

30

00:02:05,033 --> 00:02:06,633

Okay, that's it for this lesson
