1

00:00:00,166 --> 00:00:04,666

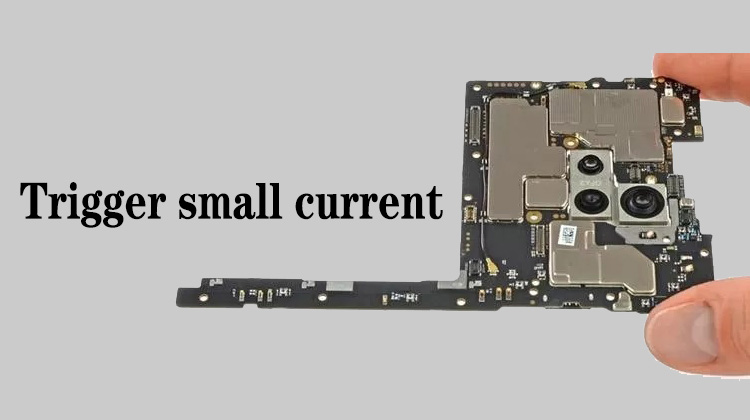

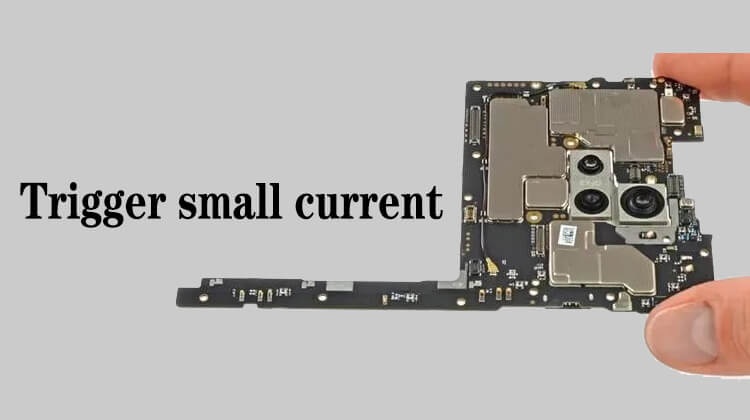

In this lesson, we talk about the maintenance of trigger small current faults

2

00:00:04,933 --> 00:00:07,333

Mainly from the following four aspects

3

00:00:07,900 --> 00:00:10,300

First, the trigger small current faults

4

00:00:10,533 --> 00:00:14,200

Second, the related circuits of trigger small current faults

5

00:00:14,400 --> 00:00:17,233

Third, the current of each stage of startup

6

00:00:17,566 --> 00:00:21,133

Fourth, how to repair the small current faults at startup

7

00:00:21,800 --> 00:00:25,000

First, let's take a look at the meaning of the word trigger,

8

00:00:26,366 --> 00:00:32,666

It means when we use the DC power supply to transfer the 4.3V power supply to the battery holder,

9

00:00:34,066 --> 00:00:38,233

find the power-on signal line on the side of the power-on button base,

10

00:00:38,500 --> 00:00:42,033

and connect the power-on signal line to the ground wire with a tweezer

11

00:00:42,500 --> 00:00:43,433

At this time,

12

00:00:43,800 --> 00:00:49,233

we can see that the current of the DC power supply shows a current response of more than 10 mA

13

00:00:51,400 --> 00:00:53,800

This means that the mobile phone can be triggered,

14

00:00:54,300 --> 00:00:56,433

or the trigger has a current response

15

00:01:01,700 --> 00:01:05,200

This is the DC power supply we use to repair the machine,

16

00:01:05,466 --> 00:01:08,100

also called the adjustable power supply

17

00:01:08,333 --> 00:01:11,366

Position A is where the current is displayed

18

00:01:13,466 --> 00:01:16,800

Let's take a look at the common trigger small current faults

19

00:01:18,666 --> 00:01:27,500

Let's watch this video, the current jumps 49mA to 150 to 88 to 90mA,

20

00:01:27,500 --> 00:01:29,166

and then the current doesn't move

21

00:01:29,966 --> 00:01:34,066

If this current can't continue to go up, it can't boot normally

22

00:01:34,400 --> 00:01:36,700

Here is the current state of this phone,

23

00:01:38,200 --> 00:01:44,266

It jumps from 0mA to 49 to 150 to 90mA,

24

00:01:44,666 --> 00:01:46,500

it cannot be turned on normally

25

00:01:48,100 --> 00:01:50,266

Let's look at another fault current

26

00:01:50,466 --> 00:01:53,900

We adjust the voltage of 4.3V to the mainboard

27

00:01:54,233 --> 00:01:57,733

The current 3mA is a problem with the power cord,

28

00:01:57,933 --> 00:01:59,633

so don't worry about it here

29

00:01:59,766 --> 00:02:02,166

We plug the power cord to the battery holder

30

00:02:02,666 --> 00:02:04,500

This mainboard needs to be pressed,

31

00:02:04,966 --> 00:02:08,266

we will see the jump of this current after triggering

32

00:02:09,566 --> 00:02:11,600

Well, let's release the power button,

33

00:02:11,900 --> 00:02:16,633

we can see that it has been set at around 152mA,

34

00:02:17,766 --> 00:02:21,566

and finally settled at 156mA

35

00:02:23,000 --> 00:02:28,000

After we plug this machine into the computer and install the MTK driver,

36

00:02:28,100 --> 00:02:30,100

it will display this port mode

37

00:02:34,066 --> 00:02:46,433

Its current state is 0 to 116 to 128 to 156 to 162mA and back to 156mA,

38

00:02:46,600 --> 00:02:48,833

and finally the current is fixed

39

00:02:50,800 --> 00:02:53,266

Its current does not exceed 200

40

00:02:54,433 --> 00:02:56,933

This is also called trigger small current

41

00:02:57,300 --> 00:02:58,800

It cannot boot normally

42

00:03:00,333 --> 00:03:01,866

Let's look at another fault

43

00:03:02,100 --> 00:03:07,533

We set the DC power supply to 4.2V and the current is 0mA

44

00:03:08,033 --> 00:03:12,233

We buckle the power cord and supply power to the mainboard battery holder,

45

00:03:12,766 --> 00:03:15,033

its current is still 0mA,

46

00:03:15,400 --> 00:03:18,500

indicating that the standby of this mobile phone is normal

47

00:03:19,300 --> 00:03:23,366

Let's take a look at its current, the current jumps faster

48

00:03:23,800 --> 00:03:32,366

From 37mA to 78 to 36 to 14 and to 36 to 37

49

00:03:32,966 --> 00:03:35,400

The current cannot be loaded normally

50

00:03:37,000 --> 00:03:45,733

The description of its current is 0 to about 37 to 78 to 36 and then 0 again,

51

00:03:47,866 --> 00:03:50,966

And it will not automatically load again

52

00:03:53,533 --> 00:03:56,000

This is a trigger small current fault

53

00:04:00,566 --> 00:04:02,400

Okay, that's it for this lesson
