In this lesson,

2

00:00:01,500 --> 00:00:05,266

we continue to talk about the circuits related to the trigger small currents

3

00:00:05,866 --> 00:00:08,633

What circuits are related to the trigger small currents?

4

00:00:09,033 --> 00:00:13,433

In actual maintenance, we generally refer to this as standby

5

00:00:14,433 --> 00:00:19,666

It can also be seen as crystal oscillator, main power supply and battery

6

00:00:20,400 --> 00:00:22,533

As soon as we put on the battery,

7

00:00:22,900 --> 00:00:27,200

the main power supply will be generated, which we usually call standby

8

00:00:28,700 --> 00:00:32,700

Including the voltage of the power supply to the power-on signal line,

9

00:00:33,966 --> 00:00:36,200

this circuit is also a standby

10

00:00:36,866 --> 00:00:41,433

Then another circuit is from the power button to the inside of the trigger power supply,

11

00:00:41,666 --> 00:00:43,866

which we usually call the trigger circuit

12

00:00:46,000 --> 00:00:47,933

We are going to press the power button,

13

00:00:48,300 --> 00:00:49,966

this action is called trigger

14

00:00:50,400 --> 00:00:51,866

We press the power button,

15

00:00:52,800 --> 00:00:54,200

ground the power button

16

00:00:56,133 --> 00:00:59,800

The power button signal can be grounded for more than 5 seconds,

17

00:00:59,800 --> 00:01:02,700

to trigger the power supply to output power first

18

00:01:02,966 --> 00:01:05,833

That is, the power is triggered and it will work

19

00:01:07,833 --> 00:01:08,900

What does it prove?

20

00:01:09,166 --> 00:01:12,833

It proves that these two parts of the circuit are no problem,

21

00:01:13,100 --> 00:01:14,433

we don't consider them

22

00:01:16,566 --> 00:01:18,566

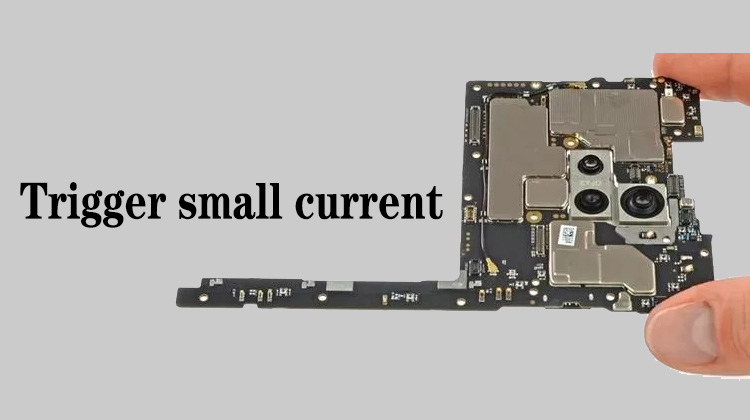

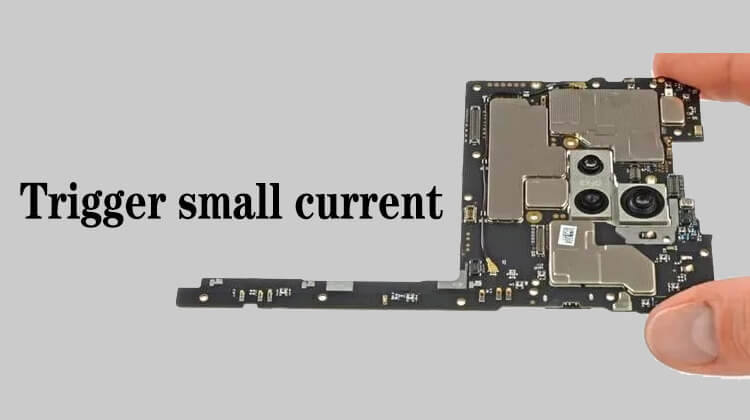

When we study trigger small current,

23

00:01:19,000 --> 00:01:24,200

we don't consider the circuits in the red frame, blue fram and green frame

24

00:01:37,100 --> 00:01:40,000

Let's see who relates to the trigger small current

25

00:01:40,433 --> 00:01:44,033

Trigger small current fault is related to the power supply chip,

26

00:01:44,266 --> 00:01:47,266

whether the power supply chip is installed normally,

27

00:01:47,666 --> 00:01:51,300

and whether the power output from it is lost in a certain way

28

00:01:52,366 --> 00:01:56,166

Whether there is a problem with the clock signals, reset signals,

29

00:01:56,733 --> 00:01:59,533

And whether there is a problem with the CPU itself,

30

00:02:00,033 --> 00:02:02,733

whether there is a problem with the temporary storage

31

00:02:03,166 --> 00:02:07,633

Whether there is a problem with the soldering of the temporary storage and CPU,

32

00:02:07,800 --> 00:02:10,066

the soldering of the CPU to the hard disk

33

00:02:10,333 --> 00:02:12,666

Whether the hard disk itself is damaged,

34

00:02:14,500 --> 00:02:18,200

whether there is any problem with the boot program in the hard disk

35

00:02:18,666 --> 00:02:23,533

And whether there is a problem with the data communication between the hard disk and the CPU

36

00:02:24,033 --> 00:02:28,333

These are the direct circuits involved in trigger small current faults

37

00:02:31,100 --> 00:02:33,166

Ok, that's it for this lesson
