1

00:00:00,000 --> 00:00:04,466

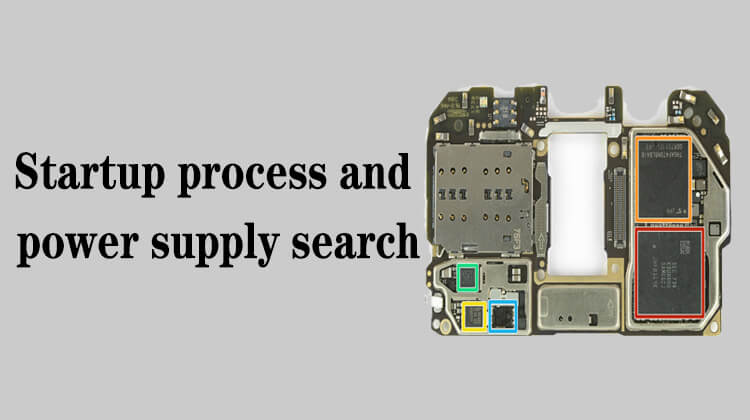

In this lesson, we talk about the framework of the startup operation process,

2

00:00:04,766 --> 00:00:08,000

that is, the structure of the startup operation process

3

00:00:08,566 --> 00:00:11,366

The first thing to work in a mobile phone is the battery

4

00:00:12,800 --> 00:00:14,600

Shown here is the battery holder

5

00:00:15,466 --> 00:00:20,700

The battery mainly provides a power supply, VBAT, or VBATT

6

00:00:21,066 --> 00:00:23,900

Android phones generally have these two codes

7

00:00:30,400 --> 00:00:32,566

The power supply reaches the charging chip,

8

00:00:33,100 --> 00:00:36,000

and the charging chip controls the MOS tube to work,

9

00:00:36,266 --> 00:00:41,100

so that the MOS tube is turned on, generating a main power supply

10

00:00:47,066 --> 00:00:50,200

This main power supply has two codes on the mobile phone,

11

00:00:50,333 --> 00:00:54,400

VPH_PWR and VBT_SYS

12

00:00:55,000 --> 00:00:56,300

In Android phones,

13

00:00:56,633 --> 00:00:59,900

this MOS tube is usually integrated in the charging chip,

14

00:01:01,000 --> 00:01:03,000

so we draw a dotted line here

15

00:01:10,066 --> 00:01:12,066

What is the main work of the charging chip?

16

00:01:14,866 --> 00:01:17,400

It mainly controls the internal MOS tube,

17

00:01:18,066 --> 00:01:23,000

and turns the power supply of the positive electrode of the battery into the main power supply,

18

00:01:23,200 --> 00:01:25,000

VPH_PWR,

19

00:01:25,400 --> 00:01:28,600

its voltage is equal to the voltage of the battery generally

20

00:01:30,266 --> 00:01:32,300

After the main power supply is generated,

21

00:01:32,366 --> 00:01:34,433

it needs to supply power to the power chip

22

00:01:35,366 --> 00:01:38,200

The power chip is also called the power management unit,

23

00:01:38,466 --> 00:01:40,333

abbreviated as PMU

24

00:01:41,066 --> 00:01:43,866

The internal standby circuit of the power chip works,

25

00:01:44,300 --> 00:01:46,733

provides voltage to the crystal oscillator,

26

00:01:47,166 --> 00:01:49,700

and the crystal oscillator works in standby

27

00:01:56,066 --> 00:01:57,033

At this time,

28

00:01:57,233 --> 00:02:02,133

the power chip will give a voltage of 1.8V to the power-on signal line,

29

00:02:02,733 --> 00:02:06,766

usually through a series resistors, and then to the power-on button

30

00:02:07,200 --> 00:02:14,366

The power-on signal lines on the Android phones are called PWRON, or KYPD_PWR

31

00:02:17,533 --> 00:02:20,000

These two types of codes are more used

32

00:02:21,000 --> 00:02:22,400

This is the boot seat,

33

00:02:26,566 --> 00:02:29,200

which is the connection seat of the power-on signal,

34

00:02:29,333 --> 00:02:32,700

and the cable with the power-on button installed on the boot seat

35

00:02:34,100 --> 00:02:36,200

When we want to pull down this signal,

36

00:02:36,600 --> 00:02:39,966

we usually connect the power button signal to the ground wire

37

00:02:45,966 --> 00:02:49,600

The symbol of the ground wire in the circuit is like this

38

00:02:49,800 --> 00:02:53,333

We press the power button to connect the signal to the ground wire,

39

00:02:53,366 --> 00:02:55,300

usually for more than 5 seconds

40

00:02:55,733 --> 00:02:57,066

After 5 seconds,

41

00:02:57,500 --> 00:03:01,366

the trigger circuit inside the power supply detects the change of this signal,

42

00:03:02,200 --> 00:03:03,866

and it will output power

43

00:03:08,000 --> 00:03:09,900

Okay, that's it for this lesson
