1

00:00:00,100 --> 00:00:04,366

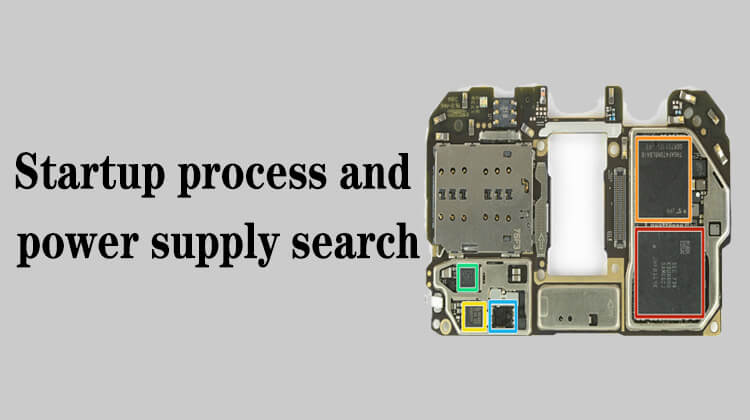

In this lesson, we will talk about the framework of the startup operation process,

2

00:00:04,433 --> 00:00:07,866

that is, the structure of the startup operation process

3

00:00:08,733 --> 00:00:09,600

Let's take a look

4

00:00:09,766 --> 00:00:12,200

The power supply outputs power to the hard disk

5

00:00:12,600 --> 00:00:13,366

For example,

6

00:00:13,366 --> 00:00:17,700

the hard disk has a 3V power supply and a 1.8V power supply

7

00:00:18,066 --> 00:00:20,633

Then the power supply outputs power to the CPU,

8

00:00:21,100 --> 00:00:25,000

the temporary storage on the CPU circuit, or to the CPU baseband

9

00:00:28,000 --> 00:00:30,866

Some CPUs have a baseband integrated in them

10

00:00:33,266 --> 00:00:34,833

BB is the code name here

11

00:00:37,366 --> 00:00:40,566

VCORE is the core power supply of the CPU,

12

00:00:40,900 --> 00:00:44,100

VGPU refers to the power supply for the GPU,

13

00:00:44,533 --> 00:00:47,966

VMODEM refers to the power supply for the baseband

14

00:00:48,833 --> 00:00:50,066

At the same time,

15

00:00:50,133 --> 00:00:55,866

it will also supply power to the application circuit and other chips, usually 1-3V

16

00:00:56,333 --> 00:00:58,866

After the power supply is supplied to the hard disk,

17

00:00:58,866 --> 00:01:01,600

CPU, and the temporary storage,

18

00:01:01,866 --> 00:01:06,166

then, the clock circuit composed of the crystal oscillator and the power supply chip

19

00:01:06,400 --> 00:01:09,066

will provide a clock signal to the CPU circuit,

20

00:01:09,166 --> 00:01:11,366

which is originally working on standby

21

00:01:11,666 --> 00:01:15,466

The CPU will also send a clock signal to the hard disk at this time

22

00:01:16,266 --> 00:01:19,666

And then the power supply will send a reset signal to the CPU

23

00:01:30,600 --> 00:01:33,500

The CPU will also reset the font library

24

00:01:33,700 --> 00:01:35,533

At this time, the CPU works,

25

00:01:35,933 --> 00:01:40,833

reads the boot program in the hard disk through data communication to perform self-test,

26

00:01:43,133 --> 00:01:48,433

and the CPU performs self-test on itself, temporary storage, and hard disk

27

00:01:51,066 --> 00:01:52,933

After the self-test is OK,

28

00:01:54,100 --> 00:01:56,333

it continues to load the boot program

29

00:01:56,566 --> 00:01:59,733

The CPU needs to output a hold signal to the power supply,

30

00:02:01,400 --> 00:02:04,000

PS_HOLD is the hold signal

31

00:02:04,600 --> 00:02:09,600

The power supply will continue to output power and maintain a normal power-on state

32

00:02:10,800 --> 00:02:13,633

Well, this is the complete startup process of the phone

33

00:02:29,433 --> 00:02:33,466

We will use this process when repairing the no-booting failure

34

00:02:36,666 --> 00:02:38,933

As a whole, this process is sequential

35

00:02:40,000 --> 00:02:42,400

For example, the first step is the battery,

36

00:02:42,633 --> 00:02:44,533

and the second step is the charging chip

37

00:02:44,966 --> 00:02:48,633

If there is no problem, it will output the main power supply

38

00:02:52,200 --> 00:02:55,933

The third step, the clock circuit is running in standby mode,

39

00:02:56,300 --> 00:03:00,833

The power supply gives a voltage of 1.8V to the power-on signal line

40

00:03:01,933 --> 00:03:04,600

Next, let's pull down the power-on signal

41

00:03:07,300 --> 00:03:09,700

It outputs the power supply of the hard disk,

42

00:03:10,033 --> 00:03:11,733

the power supply of the CPU,

43

00:03:12,033 --> 00:03:14,533

and the power supply of the temporary storage

44

00:03:15,433 --> 00:03:18,166

The power chip sends the clock signal to the CPU,

45

00:03:18,466 --> 00:03:19,933

and then to the hard disk

46

00:03:20,933 --> 00:03:24,033

Then, the power supply sends a reset signal to the CPU,

47

00:03:24,233 --> 00:03:26,333

and the CPU resets the hard disk

48

00:03:28,466 --> 00:03:32,633

After the reset is obtained, the CPU will start a self-test

49

00:03:38,000 --> 00:03:40,400

What does it read the boot program through?

50

00:03:42,700 --> 00:03:46,166

It reads the boot program by sending and receiving data

51

00:03:47,100 --> 00:03:49,233

If there is no problem with the self-test,

52

00:03:49,233 --> 00:03:53,566

it will output a hold signal, PS_HOLD

53

00:03:54,266 --> 00:03:58,866

At this point, its loading and booting program is basically completed

54

00:04:00,533 --> 00:04:03,233

This is the framework of the startup operation

55

00:04:04,300 --> 00:04:06,266

Okay, that's it for this lesson
