1

00:00:00,166 --> 00:00:01,100

In this lesson,

2

00:00:01,133 --> 00:00:05,500

we talk about the electricity leakage and the maintenance of electricity protection

3

00:00:05,566 --> 00:00:08,000

We mainly focus on the following aspects

4

00:00:08,266 --> 00:00:11,366

First, the power supply current of the normal mobile phone

5

00:00:11,933 --> 00:00:15,233

Second, the understanding of the word connection leakage

6

00:00:15,433 --> 00:00:18,966

Third, the related circuit of connection and leakage

7

00:00:19,433 --> 00:00:23,166

Fourth, the related circuit of power connection protection

8

00:00:23,466 --> 00:00:25,933

Fifth, how do we generally maintain

9

00:00:26,100 --> 00:00:28,533

Let's look at the normal current of a machine

10

00:00:28,933 --> 00:00:31,666

We adjust the voltage to 4.2V

11

00:00:31,900 --> 00:00:34,900

and used the power cord to supply power to the battery holder

12

00:00:35,266 --> 00:00:37,200

At this time, there is no current,

13

00:00:37,300 --> 00:00:39,733

indicating that this is a normal mobile phone,

14

00:00:39,866 --> 00:00:42,233

and all normal mobile phones are like this

15

00:00:43,333 --> 00:00:45,966

Supply power to the positive pole of the battery,

16

00:00:46,200 --> 00:00:50,200

without pressing the power button, it cannot have current here

17

00:00:56,733 --> 00:01:00,433

Let's take a look at the understanding of the phenomenon of power leakage

18

00:01:00,800 --> 00:01:02,833

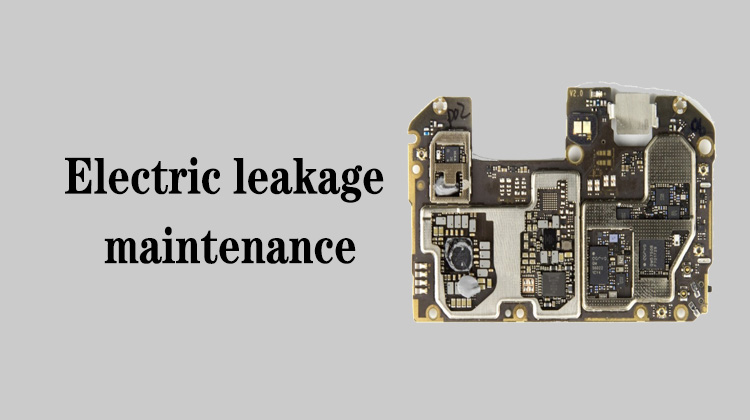

For a normal mobile phone mainboard,

19

00:01:03,200 --> 00:01:07,166

the DC power supply set the output voltage to be 4.3V

20

00:01:07,333 --> 00:01:10,700

Use the power cord to supply power to the mainboard battery holder

21

00:01:11,066 --> 00:01:11,900

At this time,

22

00:01:12,000 --> 00:01:15,533

the current of the DC power supply will display 0 mA,

23

00:01:15,733 --> 00:01:18,166

which is also called no current response

24

00:01:18,533 --> 00:01:19,800

For a leaky mainboard,

25

00:01:20,000 --> 00:01:23,733

after adding 4.3V of power to the battery holder,

26

00:01:24,233 --> 00:01:26,066

without pressing the power button,

27

00:01:27,400 --> 00:01:31,300

the current display of the DC power supply shows a certain current,

28

00:01:31,933 --> 00:01:33,866

which may be several mA,

29

00:01:34,033 --> 00:01:35,633

some tens of mA,

30

00:01:35,866 --> 00:01:37,600

a few hundred mA

31

00:01:39,366 --> 00:01:42,933

We should also note that this current is basically fixed here,

32

00:01:43,866 --> 00:01:46,266

This phenomenon is called leakage current

33

00:01:52,666 --> 00:01:56,233

Let's take a look at the specific phenomenon of this power leakage

34

00:01:56,500 --> 00:01:59,700

We adjust the DC power supply to 4.2V,

35

00:01:59,833 --> 00:02:02,133

and as soon as we turned on the power

36

00:02:03,366 --> 00:02:06,733

its current ran to 422 mA,

37

00:02:07,033 --> 00:02:09,566

Its current is always set at this number

38

00:02:10,733 --> 00:02:14,100

We call it leakage 422 mA,

39

00:02:14,466 --> 00:02:18,566

also called connection leakage 422 mA

40

00:02:20,266 --> 00:02:24,800

Which circuits and components are directly related to the leakage of electricity?

41

00:02:25,833 --> 00:02:26,800

Let's take a look

42

00:02:29,166 --> 00:02:32,300

The positive pole of the battery generates power,

43

00:02:32,866 --> 00:02:34,633

which is supplied to the charging chip,

44

00:02:35,200 --> 00:02:37,433

which is converted into the main power supply,

45

00:02:38,700 --> 00:02:41,666

and then the main power supply is supplied to the power chip,

46

00:02:42,033 --> 00:02:47,666

display chip, WiFi chip, and RF power amplifier, etc.

47

00:02:51,866 --> 00:02:54,866

So what circuits are connected to the leakage current?

48

00:02:55,433 --> 00:03:01,333

All lines to which the positive battery goes and all lines to which the mains supply is connected

49

00:03:03,333 --> 00:03:08,266

Any damage to any component on the line may cause electricity leakage

50

00:03:09,400 --> 00:03:11,266

Okay, that's it for this lesson
