    30. How to find the positive pole of the battery

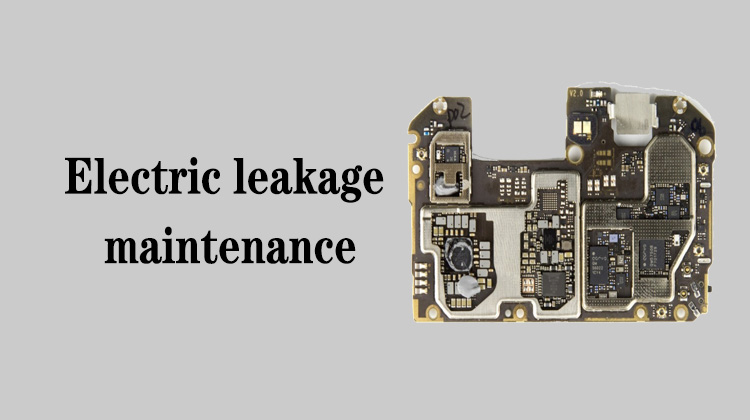

    In this lesson, we will talk about the description of the electrical leakage in the circuit diagram.
    25 person
    Collection
    Detail
    Comments

    1

    00:00:00,133 --> 00:00:01,300

    In this lesson,

    2

    00:00:01,333 --> 00:00:05,533

    we talk about the description of the electrical leakage in the circuit diagram

    3

    00:00:05,866 --> 00:00:07,233

    As we said before,

    4

    00:00:07,400 --> 00:00:11,400

    the leakage of electricity is only associated with two circuits

    5

    00:00:11,833 --> 00:00:15,133

    First, the circuit of the positive electrode of the battery

    6

    00:00:15,466 --> 00:00:17,833

    Second, the main power supply

    7

    00:00:18,166 --> 00:00:20,266

    Let's take a look in the circuit diagram

    8

    00:00:20,700 --> 00:00:24,900

    First, what lines are the positive poles of the battery connected to?

    9

    00:00:25,433 --> 00:00:28,966

    Ok, let's open Xinzhizao intelligent maintenance system

    10

    00:00:29,433 --> 00:00:31,866

    Open a circuit diagram of Xiaomi 10

    11

    00:00:32,100 --> 00:00:35,066

    Let's take a look at the positive pole of its battery first

    12

    00:00:35,333 --> 00:00:37,800

    We only need to find the battery connector

    13

    00:00:38,100 --> 00:00:41,066

    For example, this is the battery connector

    14

    00:00:41,433 --> 00:00:43,433

    Then we can open the component diagram

    15

    00:00:43,433 --> 00:00:46,366

    and take a look at the location code of the battery connector

    16

    00:00:47,100 --> 00:00:50,733

    We see that its location code is J5400

    17

    00:00:52,500 --> 00:00:56,900

    We double click on it and it jumps to this location we are looking for

    18

    00:00:58,266 --> 00:01:01,733

    We go back to the circuit diagram, we just click next

    19

    00:01:02,066 --> 00:01:03,566

    Ok, it's found here

    20

    00:01:04,000 --> 00:01:07,333

    Then the J5400 is the battery connector

    21

    00:01:08,300 --> 00:01:15,433

    This battery connector mainly provides a power supply, VBATT, or VBATT_CONN

    22

    00:01:16,100 --> 00:01:19,833

    The first and second pins of the battery connector are connected to a line,

    23

    00:01:20,266 --> 00:01:22,533

    which is the positive pole of the battery

    24

    00:01:26,166 --> 00:01:28,666

    It is divided into two paths from here,

    25

    00:01:29,400 --> 00:01:34,300

    one is through the resistor of two milliohms, it becomes VBATT

    26

    00:01:36,133 --> 00:01:39,900

    These are its filter capacitors, which are anti-static

    27

    00:01:40,200 --> 00:01:45,066

    Well, we're mainly looking at where the positive terminal of the battery is connected to

    28

    00:01:45,200 --> 00:01:50,700

    Double click VBATT, it goes to U5200_1

    29

    00:01:51,500 --> 00:01:55,466

    By the code name CHG, we know it is the charging chip

    30

    00:01:56,433 --> 00:02:01,366

    We see that the battery positive is connected to this chip, U5200

    31

    00:02:01,766 --> 00:02:02,833

    At the same time,

    32

    00:02:02,900 --> 00:02:10,400

    there are capacitors C5413 and C5458 connected to the positive electrode of this battery

    33

    00:02:10,633 --> 00:02:12,700

    When the mainboard has a power leakage,

    34

    00:02:12,900 --> 00:02:15,500

    these two capacitors may be damaged

    35

    00:02:20,800 --> 00:02:23,833

    Then let's see where VBATT leads to

    36

    00:02:26,600 --> 00:02:30,200

    We find that the line leading to the positive electrode of the battery

    37

    00:02:30,200 --> 00:02:34,133

    is connected to U5200 by running the circuit

    38

    00:02:35,266 --> 00:02:37,633

    This circuit has five capacitors,

    39

    00:02:37,866 --> 00:02:48,033

    C5413, C5458, C5414, C5422, C5469,

    40

    00:02:48,766 --> 00:02:52,666

    and an anti-static diode, CR5402

    41

    00:02:52,766 --> 00:02:54,000

    and one chip,

    42

    00:02:54,266 --> 00:02:56,200

    total of 7 components

    43

    00:02:57,266 --> 00:02:59,866

    If they are corroded or damaged by water,

    44

    00:03:00,000 --> 00:03:02,166

    they will cause the electricity leakage

    45

    00:03:02,966 --> 00:03:05,500

    This is the line of VBATT,

    46

    00:03:05,800 --> 00:03:09,900

    then the positive electrode of the battery has changed a name from here

    47

    00:03:11,966 --> 00:03:14,066

    Let's see which lines it leads to

    48

    00:03:14,166 --> 00:03:15,300

    Double click it

    49

    00:03:15,366 --> 00:03:18,700

    Not here, because there is J1 at the end of the name

    50

    00:03:19,433 --> 00:03:20,400

    Neither here

    51

    00:03:20,900 --> 00:03:23,433

    OK, here is a description of a touchpoint

    52

    00:03:24,166 --> 00:03:26,900

    We found that it actually leads nowhere

    53

    00:03:28,900 --> 00:03:33,400

    Then the line of the positive pole of the battery ends only from here to here

    54

    00:03:36,600 --> 00:03:38,566

    Okay, that's it for this lesson
