1

00:00:00,166 --> 00:00:05,000

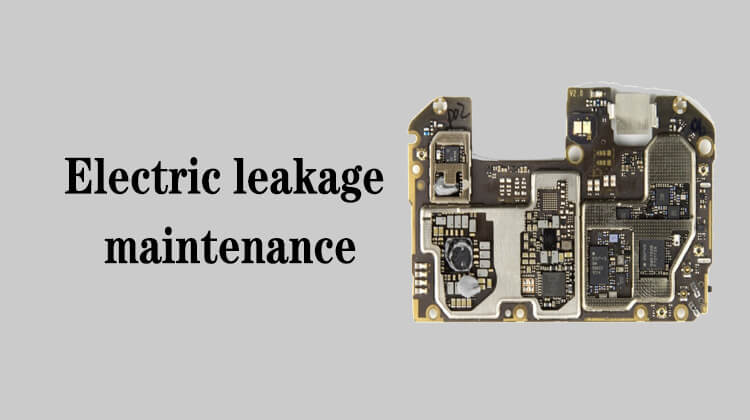

In this lesson, we talk about the circuit diagram related to the electricity leakage

2

00:00:05,966 --> 00:00:10,866

We know that the circuit related to electricity leakage is mainly divided into two parts

3

00:00:11,266 --> 00:00:14,066

The first one is the circuit of the positive pole of the battery,

4

00:00:14,300 --> 00:00:16,700

and the second is the main power supply circuit

5

00:00:16,933 --> 00:00:18,766

Let's look at the main power supply first

6

00:00:18,900 --> 00:00:22,433

What components and chips are its circuit connected to?

7

00:00:23,900 --> 00:00:26,066

Let's take a look at the circuit diagram

8

00:00:26,866 --> 00:00:29,566

We open Xinzhizao maintenance query system

9

00:00:30,600 --> 00:00:33,966

For example, we open the mainboard of Xiaomi 10

10

00:00:34,733 --> 00:00:37,733

How do we find its main power supply in the circuit diagram?

11

00:00:38,400 --> 00:00:42,133

We learned earlier that its battery connector will go to the charging chip,

12

00:00:42,533 --> 00:00:44,833

which is U5200

13

00:00:49,933 --> 00:00:53,333

So, what role does the charging chip play in the power-on circuit?

14

00:00:54,000 --> 00:00:58,566

It is to turn on the positive electrode of the battery through the internal MOS tube,

15

00:00:58,733 --> 00:01:01,466

power supply comes out from PIN 78

16

00:01:02,733 --> 00:01:05,500

Since the source of the main power supply is here,

17

00:01:06,166 --> 00:01:10,300

let's take a look at which components and chips are connected to the main power supply

18

00:01:11,000 --> 00:01:14,600

We see that it leads to the chip U5200,

19

00:01:14,900 --> 00:01:18,366

and of course it also leads to these five components

20

00:01:18,466 --> 00:01:21,733

In this position we see five small components,

21

00:01:21,966 --> 00:01:23,800

and one chip is the charging chip

22

00:01:24,966 --> 00:01:28,666

Of course, this main power supply will lead to many places

23

00:01:28,766 --> 00:01:33,000

On this page, these six components are directly related

24

00:01:35,066 --> 00:01:39,000

Okay, let's continue to double click on the name and see where it goes

25

00:01:40,466 --> 00:01:43,166

It leads to the chip U6001,

26

00:01:43,266 --> 00:01:46,066

and there are two filter capacitors next to it

27

00:01:50,000 --> 00:01:54,666

It leads to chip U6005 and there are two capacitors

28

00:01:57,600 --> 00:02:00,466

Let's keep looking, here is a capacitor

29

00:02:01,100 --> 00:02:04,733

It leads to a socket J6501 and a capacitor

30

00:02:06,133 --> 00:02:11,300

It leads to the 3rd, 5th and 13th pins of the chip U7302

31

00:02:11,766 --> 00:02:17,333

the capacitors C7362 and C7363

32

00:02:20,333 --> 00:02:22,333

This is not what we are looking for,

33

00:02:22,733 --> 00:02:25,633

because there is an extra DIV behind it

34

00:02:27,533 --> 00:02:31,766

It leads to the socket J0196 and this capacitor

35

00:02:35,233 --> 00:02:38,233

Here it is through a zero ohm resistor

36

00:02:40,033 --> 00:02:42,200

And here, through the inductor,

37

00:02:42,966 --> 00:02:49,300

it leads to chip U0900, here is a capacitor C0907

38

00:02:50,466 --> 00:02:53,933

Here it leads to the chip U1801_4

39

00:02:55,300 --> 00:02:58,466

here it leads to the chip U1801-5,

40

00:02:58,833 --> 00:03:01,600

and it has three capacitors on this line

41

00:03:03,800 --> 00:03:07,033

Here it leads to the chip U1902,

42

00:03:07,333 --> 00:03:10,466

and there are two capacitors are connected at the same time

43

00:03:10,700 --> 00:03:13,433

It leads to the chip U1903,

44

00:03:13,866 --> 00:03:16,766

and the two capacitors are connected at the same time

45

00:03:17,100 --> 00:03:20,166

Here it leads to the chip U2001,

46

00:03:20,500 --> 00:03:23,633

and three capacitors are connected at the same time

47

00:03:25,366 --> 00:03:30,566

Here, it leads to the chip U2105 through a zero-ohm resistor,

48

00:03:31,166 --> 00:03:35,766

as well as two capacitors C2111 and C2112

49

00:03:36,300 --> 00:03:41,666

Here it is connected to the chip U2501 through a 0-ohm resistor,

50

00:03:42,133 --> 00:03:44,400

there are five capacitors on it

51

00:03:46,766 --> 00:03:51,233

Here it leads to the chip U2500 and five capacitors

52

00:03:51,766 --> 00:03:53,633

I won't look for other lines one by one

53

00:03:54,333 --> 00:03:56,900

As long as this code name is the main power supply,

54

00:03:57,200 --> 00:04:01,200

any chip or capacitor it leads to is associated with it

55

00:04:07,466 --> 00:04:11,766

We found that VPH_PWR leads to a lot of components

56

00:04:17,233 --> 00:04:18,500

Let's summarize,

57

00:04:19,166 --> 00:04:24,433

a problem with a component connected to this line may cause the electricity leakage

58

00:04:25,400 --> 00:04:27,466

Okay, that's it for this lesson
