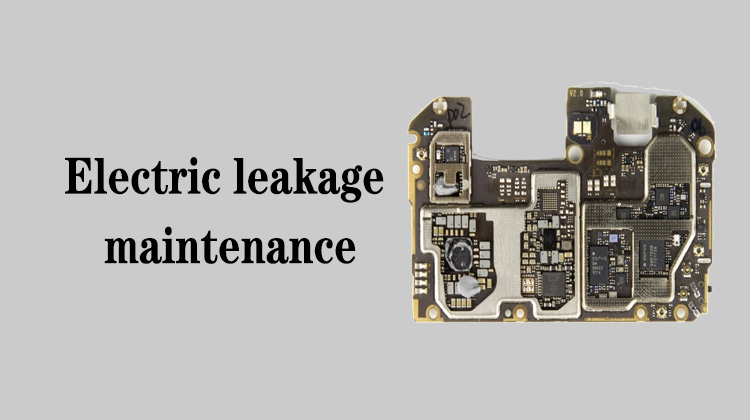

33. How to repair the battery positive leakage
In this lesson, we will talk about how to find the positive electrode of the battery in the bitmap.
Detail
Comments

1

00:00:00,166 --> 00:00:00,966

In this lesson,

2

00:00:01,066 --> 00:00:04,800

we talk about how to find the positive electrode of the battery in the bitmap

3

00:00:07,966 --> 00:00:15,533

Here, the two capacitors C5513 and C5518 will cause the electrical leakage

4

00:00:20,300 --> 00:00:24,633

The chip U5500 will also cause the electrical leakage

5

00:00:26,800 --> 00:00:32,066

If the two capacitors including C5413 and C5458

6

00:00:32,066 --> 00:00:34,266

are corroded or damaged by water,

7

00:00:34,533 --> 00:00:36,966

it will also cause electrical leakage

8

00:00:37,800 --> 00:00:42,133

The chip U5200 will also cause the electrical leakage

9

00:00:42,433 --> 00:00:45,433

In the actual maintenance, the quick method is that

10

00:00:45,500 --> 00:00:47,900

the positive electrode of the battery has leakage,

11

00:00:48,700 --> 00:00:53,233

we generally first find the capacitor that is corroded by water on this line,

12

00:00:53,433 --> 00:00:55,466

remove it, and test it,

13

00:00:55,666 --> 00:00:57,333

if the fault disappears

14

00:00:57,600 --> 00:01:00,500

indicating that the cause of the fault has been found,

15

00:01:00,900 --> 00:01:02,633

and the fault can be repaired

16

00:01:07,700 --> 00:01:10,233

We can remove one or two capacitors

17

00:01:12,033 --> 00:01:15,700

This capacitor connected to the power supply is a filter capacitor,

18

00:01:16,000 --> 00:01:18,833

and only 3 capacitors are needed in a line

19

00:01:21,933 --> 00:01:25,433

Of course, you can also find a good capacitor to replace it

20

00:01:31,833 --> 00:01:34,666

If the capacitor is removed and it still leaks,

21

00:01:34,900 --> 00:01:37,733

we have to consider removing the chip on the lline

22

00:01:47,866 --> 00:01:53,233

There are two chips on the line, U5200 and U5500

23

00:01:54,966 --> 00:01:57,366

We remove the two chips respectively

24

00:02:05,900 --> 00:02:09,700

When we take off a chip and test it, it no longer leaks,

25

00:02:10,366 --> 00:02:13,033

it means that there is a problem with the chip,

26

00:02:14,033 --> 00:02:17,066

it is damaged and leads to the electricity leakage

27

00:02:23,933 --> 00:02:25,500

So how do we fix it?

28

00:02:26,400 --> 00:02:30,433

We buy a good chip, or take a good chip from the disassembly board,

29

00:02:31,933 --> 00:02:35,766

install it on the mainboard, and we can fix the fault

30

00:02:38,800 --> 00:02:44,666

This is how do we usually fix the problem of the electrical leakage of the battery positive electrode

31

00:02:45,300 --> 00:02:47,233

Ok, that's it for this lesson
