1

00:00:00,200 --> 00:00:04,766

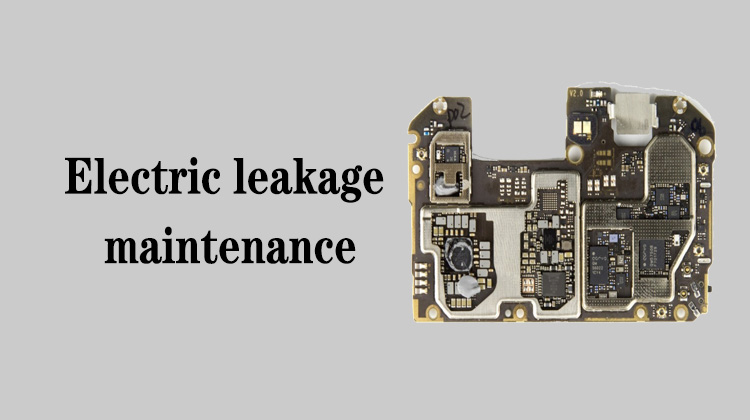

In this lesson, we will talk about how to repair the leakage of the main power supply

2

00:00:06,766 --> 00:00:08,000

We mentioned earlier that

3

00:00:08,000 --> 00:00:11,400

the electrical leakage is related to the positive line of the battery

4

00:00:11,500 --> 00:00:13,200

and the line of the main power supply

5

00:00:14,133 --> 00:00:15,666

In the actual maintenance,

6

00:00:15,933 --> 00:00:19,266

if we determine that there is a leakage on the main power supply line,

7

00:00:19,600 --> 00:00:21,066

how should we repair it?

8

00:00:25,133 --> 00:00:27,866

Generally, this can be divided into two cases

9

00:00:28,200 --> 00:00:31,333

One is that the mainboard has water ingress corrosion,

10

00:00:31,633 --> 00:00:34,666

and the other is that there is no water ingress corrosion

11

00:00:41,933 --> 00:00:44,766

If there is water corrosion on the main power supply line,

12

00:00:44,966 --> 00:00:49,100

we need to find all the components to which the main power supply leads in the bitmap

13

00:00:57,566 --> 00:00:59,500

We focus on capacitors and chips

14

00:01:00,200 --> 00:01:04,066

We generally observe all capacitances on the line under the microscope

15

00:01:08,333 --> 00:01:10,366

If we see the capacitor corroded by water,

16

00:01:10,533 --> 00:01:11,900

we first remove it,

17

00:01:12,266 --> 00:01:15,833

and then supply power to the mainboard to see if there is no leakage

18

00:01:30,200 --> 00:01:32,266

If there is no more leakage at this time,

19

00:01:32,400 --> 00:01:35,433

which means that the leakage fault we mentioned disappears,

20

00:01:35,733 --> 00:01:38,066

it means that we have already repaired it

21

00:01:47,066 --> 00:01:50,400

If there is still leakage, what should we do?

22

00:01:53,433 --> 00:01:58,466

We will continue to look for capacitors and chips on the line to see if there is any corrosion

23

00:02:02,433 --> 00:02:04,600

If it is corroded, remove it,

24

00:02:05,066 --> 00:02:08,033

and power up the mainboard to see if there is any leakage

25

00:02:11,133 --> 00:02:14,366

If there is no more leakage, it means it has been repaired

26

00:02:14,933 --> 00:02:16,533

If it still has leakage,

27

00:02:16,733 --> 00:02:19,833

then we have to keep looking until there is no more leakage,

28

00:02:20,300 --> 00:02:21,666

and the repair is over

29

00:02:27,600 --> 00:02:29,800

If the capacitor is corroded by water,

30

00:02:29,933 --> 00:02:32,533

we don't need to repair it after removing it,

31

00:02:32,833 --> 00:02:36,166

just make sure that there are 3 capacitors on this line

32

00:02:52,500 --> 00:02:55,500

If the chip is corroded by water, we remove the chip,

33

00:02:55,800 --> 00:02:57,600

we have to deal with the chip first,

34

00:02:58,300 --> 00:02:59,566

and then install it

35

00:03:05,300 --> 00:03:08,633

If there is no more leakage, the fault will be fixed

36

00:03:17,500 --> 00:03:20,933

After we re-solder the chip, if the mainboard still leaks,

37

00:03:21,166 --> 00:03:24,800

then we need to replace the chip and solder it to the mainboard

38

00:03:31,266 --> 00:03:33,133

Ok, that's it for this lesson
