1

00:00:00,100 --> 00:00:04,466

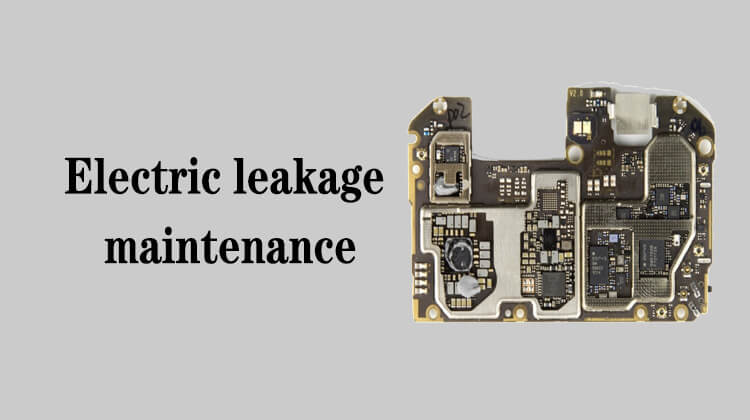

We will continue to talk about the maintenance of electrical leakage in this lesson

2

00:00:04,633 --> 00:00:09,600

The electrical leakage fault is directly related to the line of the battery positive pole

3

00:00:09,833 --> 00:00:11,800

and the line of the main power supply

4

00:00:14,266 --> 00:00:18,900

We learned the maintenance method of water ingress corrosion on the main power supply line before,

5

00:00:19,033 --> 00:00:23,133

and most of the electrical leakage is caused by water ingress corrosion

6

00:00:33,266 --> 00:00:37,233

How should we repair the mainboard if there is no water corrosion on the mainboard?

7

00:00:37,766 --> 00:00:41,100

In this case, some leakage may be relatively large,

8

00:00:41,500 --> 00:00:44,500

such as leakage of more than 100mA

9

00:00:44,800 --> 00:00:48,133

At this time, we can touch the components with our hands

10

00:00:48,466 --> 00:00:52,066

For example, we can touch the components with the back of the finger

11

00:00:52,066 --> 00:00:53,733

to see where the heat is,

12

00:00:54,166 --> 00:00:56,533

because the back of the finger is more sensitive

13

00:00:57,366 --> 00:01:00,266

The current needs to be above 100 mA,

14

00:01:00,533 --> 00:01:03,800

and we can sense the temperature by touching it with our fingers

15

00:01:20,000 --> 00:01:23,866

We power up the mainboard, and after two or three seconds we can touch

16

00:01:24,266 --> 00:01:26,466

Find the component that generates heat,

17

00:01:26,733 --> 00:01:30,966

we remove this component, which is usually either a capacitor or a chip

18

00:01:31,433 --> 00:01:33,333

After removing the components,

19

00:01:33,533 --> 00:01:37,333

we power up the mainboard again to see if there is any leakage

20

00:01:37,700 --> 00:01:40,900

If there is no more leakage, the fault will disappear

21

00:01:41,300 --> 00:01:45,900

This is the temperature perception method, also called temperature sense method

22

00:01:46,300 --> 00:01:50,633

In fact, the electrical leakage is generally more than 30 mA,

23

00:01:50,966 --> 00:01:53,400

and the fault point can be sensed by hand

24

00:01:53,800 --> 00:01:58,500

It depends on the individual, many people may not have very sensitive fingers

25

00:01:58,800 --> 00:02:00,900

This is the general repair method

26

00:02:01,400 --> 00:02:03,433

Then there is a more scientific way,

27

00:02:03,533 --> 00:02:07,266

which is to use thermal imaging equipment to find out the heat source

28

00:02:07,466 --> 00:02:08,833

Let me tell you the steps

29

00:02:10,600 --> 00:02:13,466

Power on the mainboard, turn on the thermal imager,

30

00:02:13,766 --> 00:02:16,166

and place the mainboard under the thermal imager

31

00:02:16,933 --> 00:02:21,566

It scans the temperature on the mainboard and presents the heating position on the display

32

00:02:28,633 --> 00:02:32,400

It is called an infrared PCB rapid diagnostic instrument,

33

00:02:32,566 --> 00:02:34,900

or an infrared temperature detector

34

00:02:35,166 --> 00:02:38,300

This kind of equipment is very helpful for our maintenance

35

00:02:38,966 --> 00:02:42,066

There are many styles of this device, let me show you

36

00:02:44,133 --> 00:02:48,100

The slogan says that it is a good partner for leakage maintenance,

37

00:02:48,600 --> 00:02:52,633

which can accurately capture small leakage below 5 mA

38

00:02:53,033 --> 00:02:56,000

and locate the leakage component in one second

39

00:02:57,566 --> 00:03:01,700

It generally sells for 1,800 to 3,000 more

40

00:03:04,100 --> 00:03:07,566

We search for mobile phone repair thermal imaging on Taobao,

41

00:03:08,233 --> 00:03:10,366

and we can see that there are many kinds

42

00:03:11,200 --> 00:03:14,133

For example, CPB infrared thermal imager,

43

00:03:14,600 --> 00:03:17,733

Potential third-generation infrared thermal imager

44

00:03:18,300 --> 00:03:20,566

After you buy, there will be a tutorial

45

00:03:22,833 --> 00:03:27,766

This device can quickly find heating components instead of temperature sensing method

46

00:03:27,766 --> 00:03:30,766

for faults with relatively small leakage currents

47

00:03:38,000 --> 00:03:41,300

After finding it, we can remove the components,

48

00:03:41,500 --> 00:03:43,300

or replace the components

49

00:03:43,500 --> 00:03:47,933

If it is a capacitor, there is no need to replace it after removing it

50

00:03:48,666 --> 00:03:51,366

If it is a chip, we can replace the chip

51

00:03:52,866 --> 00:03:54,633

Ok, that's it for this lesson
