1

00:00:00,533 --> 00:00:02,166

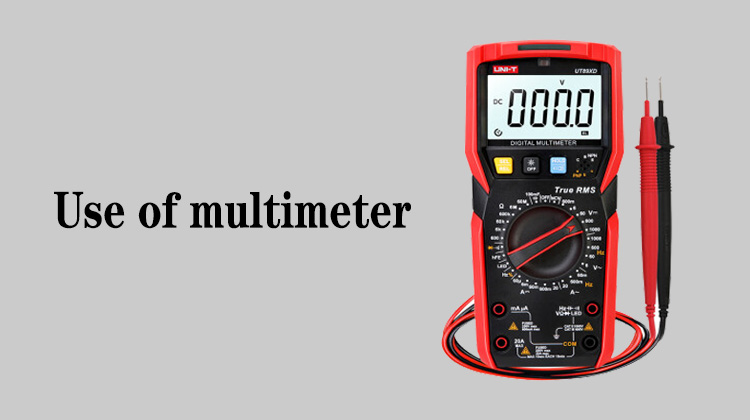

Usage of multimeter

2

00:00:02,766 --> 00:00:07,100

In this video, we mainly explain how the multimeter measures the diode value

3

00:00:09,100 --> 00:00:14,333

The diode value refers to a value measured with the diode range of the multimeter to ground

4

00:00:18,833 --> 00:00:22,600

In maintenance, it is also called measuring resistance,

5

00:00:22,766 --> 00:00:26,566

measuring impedance, hitting value, etc.

6

00:00:27,466 --> 00:00:30,866

In fact, these all refer to the same operation

7

00:00:34,166 --> 00:00:40,066

Measuring the diode value can help us judge whether there is a short circuit or disconnection in the line,

8

00:00:40,333 --> 00:00:43,133

and can help us judge whether the chip is damaged

9

00:00:47,200 --> 00:00:52,800

It is an essential step in maintenance, and it accounts for 80% of the maintenance

10

00:00:57,566 --> 00:00:59,766

Diode value measurement procedure

11

00:01:00,200 --> 00:01:05,166

Step 1, insert the black marker of the multimeter into the common port,

12

00:01:06,200 --> 00:01:10,433

and insert the red marker into the red jack marked by the voltage resistance

13

00:01:12,333 --> 00:01:16,066

Step 2, the multimeter is adjusted to the diode range

14

00:01:16,666 --> 00:01:19,633

Step 3, power off the mainboard

15

00:01:21,133 --> 00:01:24,866

Step 4, the red marker of the multimeter should be grounded,

16

00:01:25,666 --> 00:01:27,900

and the black marker is used to measure

17

00:01:29,400 --> 00:01:33,933

Step 5, after the measurement, the screen will display the reading,

18

00:01:34,733 --> 00:01:37,966

we can just read it directly, it has no unit

19

00:01:40,266 --> 00:01:43,500

Step 6, if the measured value shows 000,

20

00:01:44,000 --> 00:01:46,133

it means that the line is short-circuited

21

00:01:48,933 --> 00:01:53,633

If it shows OL, it means that there may be a disconnection in the line

22

00:01:57,866 --> 00:02:02,200

If the measured value is not much different from that of a good mainboard,

23

00:02:02,533 --> 00:02:05,433

it means that the diode value of the line is normal

24

00:02:06,166 --> 00:02:09,666

Precautions for Measuring Diode Values with Multimeters

25

00:02:10,466 --> 00:02:13,566

When measuring, the markers cannot be reversed

26

00:02:14,633 --> 00:02:18,766

After reversed connection, the value will not be able to be measured,

27

00:02:18,933 --> 00:02:21,266

or the measured value will be abnormal

28

00:02:24,900 --> 00:02:29,933

When measuring, the multimeter may make a sound when the value is lower than 100

29

00:02:32,433 --> 00:02:35,366

A sound does not mean that the line is short circuited,

30

00:02:35,966 --> 00:02:37,500

we must look at the value,

31

00:02:38,033 --> 00:02:41,066

because some lines have very low diode values

32

00:02:43,700 --> 00:02:45,800

For example, iPhone X,

33

00:02:46,100 --> 00:02:48,700

the GPU power supply value is only 1,

34

00:02:49,300 --> 00:02:52,166

the multimeter will display 001 when we measure,

35

00:02:54,000 --> 00:02:55,533

and it will make a sound,

36

00:02:56,133 --> 00:02:59,666

which does not mean a short circuit, which is normal

37

00:03:00,066 --> 00:03:02,366

Let's measure it in the physical mainboard

38

00:03:05,066 --> 00:03:08,300

Insert the black marker of the multimeter into the COM port,

39

00:03:08,566 --> 00:03:10,900

insert the red marker into the V port,

40

00:03:12,466 --> 00:03:14,933

and adjust the multimeter to the diode level

41

00:03:19,533 --> 00:03:21,633

When the diode icon is displayed,

42

00:03:22,000 --> 00:03:25,066

it means that the multimeter is currently in the diode range

43

00:03:25,733 --> 00:03:29,966

The red marker is grounded, and the black marker is used to measure

44

00:03:31,300 --> 00:03:34,566

The measured value is 0.244

45

00:03:35,366 --> 00:03:40,066

Under normal circumstances, we directly read 224

46

00:03:40,833 --> 00:03:43,633

We can compare the measured value with a good mainboard,

47

00:03:44,133 --> 00:03:47,633

or compare it with the reference value given in Xinzhizao

48

00:03:49,700 --> 00:03:54,400

If the value is not much different, it means that the diode value is normal

49

00:03:54,866 --> 00:03:56,900

Let's measure the connector pins

50

00:03:57,633 --> 00:04:01,266

The value of this connector pin is 647

51

00:04:02,266 --> 00:04:05,400

If we measure the signal, the value is 0,

52

00:04:05,700 --> 00:04:07,833

it means that the line is short-circuited

53

00:04:09,666 --> 00:04:14,100

If there is a pin with a value during measurement, the measured value is OL,

54

00:04:15,433 --> 00:04:18,200

indicating that there is a disconnection on the mainboard

55

00:04:18,600 --> 00:04:23,700

When measuring, if the black marker is grounded and the red marker is used for measurement,

56

00:04:24,200 --> 00:04:28,133

the measured value will be too large, or the value cannot be measured

57

00:04:28,900 --> 00:04:30,933

Ok, that's all for this video
